Description
Products
Paving stone, Cobblestone, Mosaic, Tiles
Machine description
The splitting lines has all the advantages of the individual SLG and HSM machines from which they are composed, and add even more performance to the production of paving stones by combining them into one continuous production line. A single paving stone splitter can process up to 10 tonnes of stone per shift.

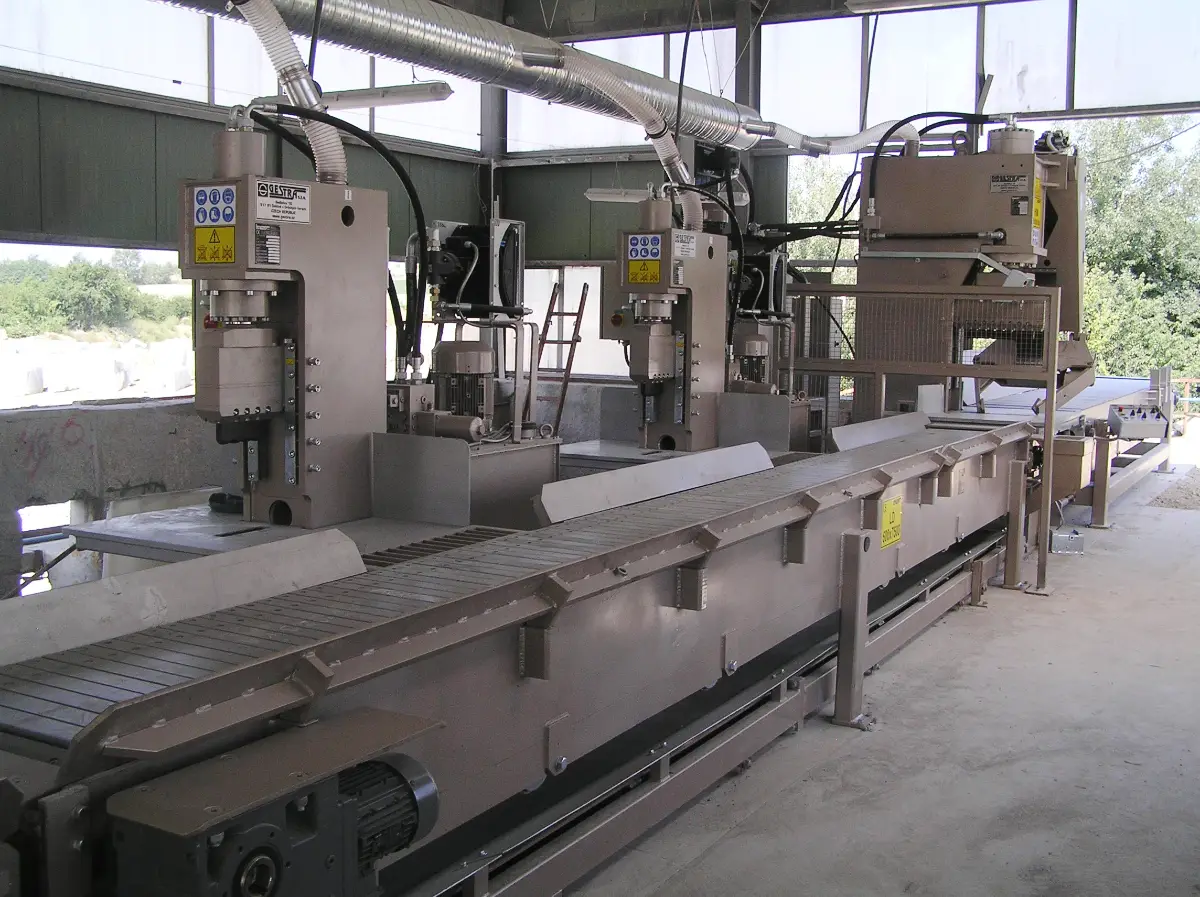

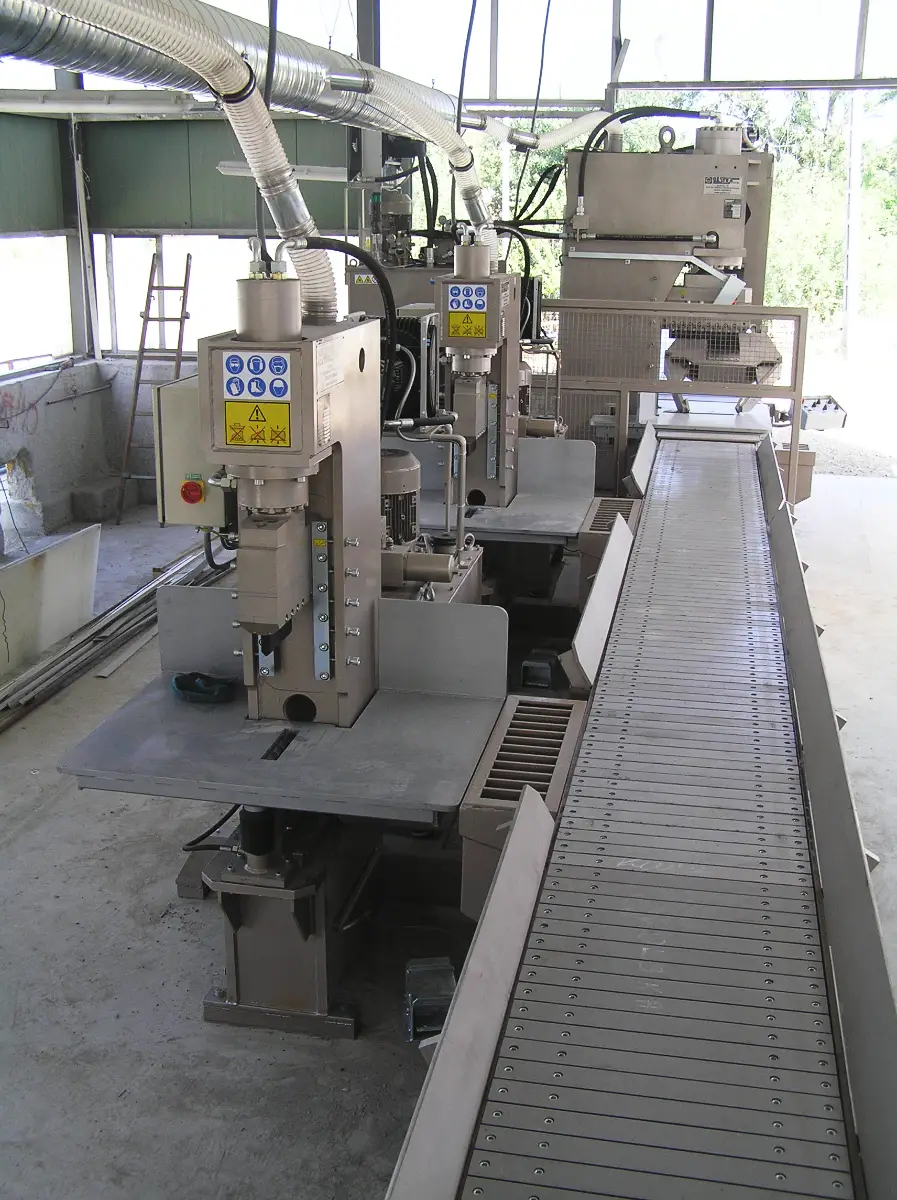

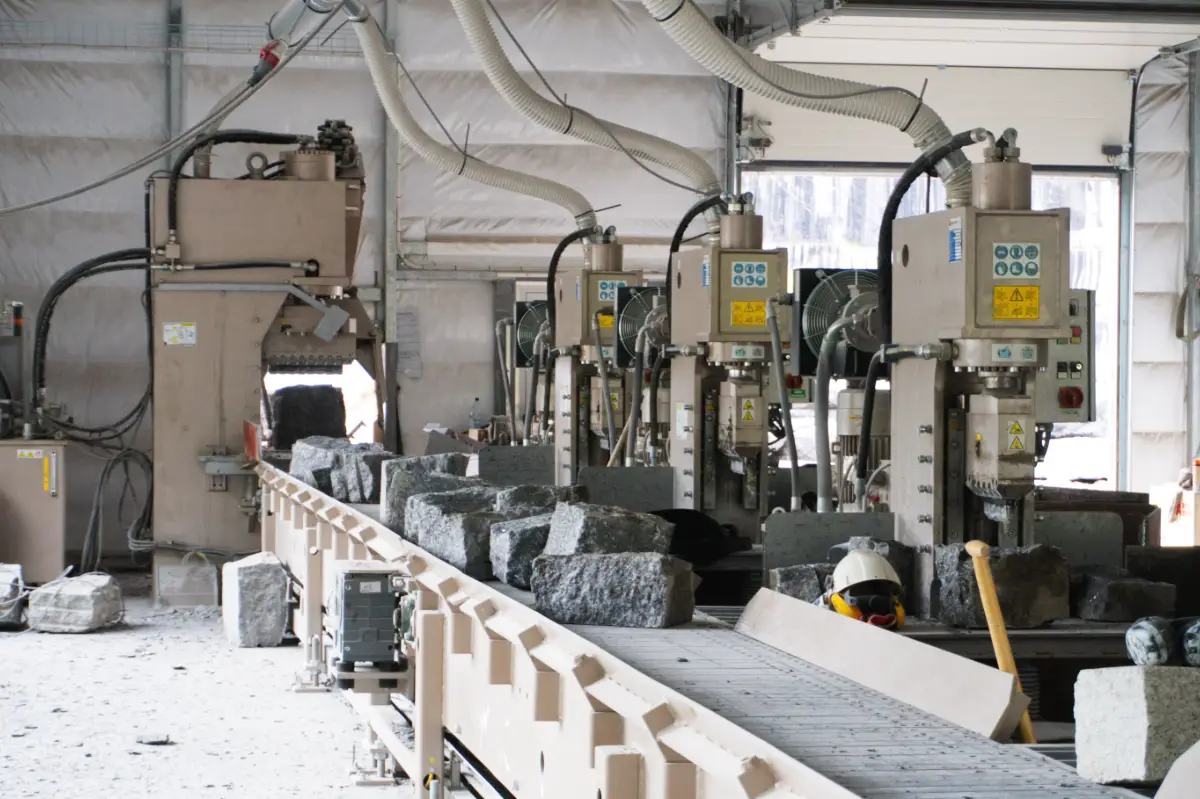

The SLG+ lines are made up of one building stone line (SLG), followed by light conveyors and a variety of smaller paving block splitters. Their number varies from two to five depending on the required production and the combination of products produced.
Work organisation
The sophisticated organisation of work, the optimum placement of the splitters and the length of the supply conveyors and their parameters ensure top quality production. We are happy to pass on our know-how that we have accumulated over more than 30 years working with quarries around the world.
Automatic waste removal

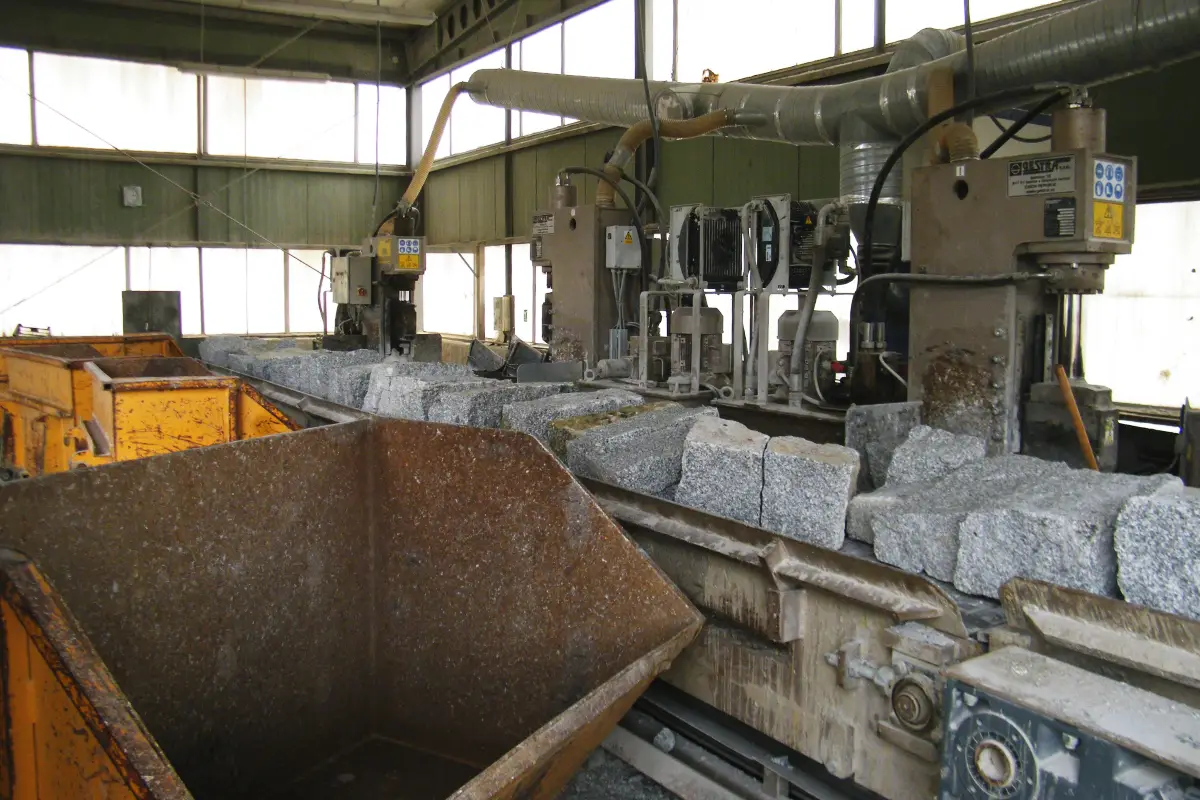

Below the light conveyors for the small splitters there is a rubber belt conveyor for continuous removal of the split waste. This significantly saves the time required for daily cleaning after a shift. Its use reduces the risk of injury and damage to the machines.

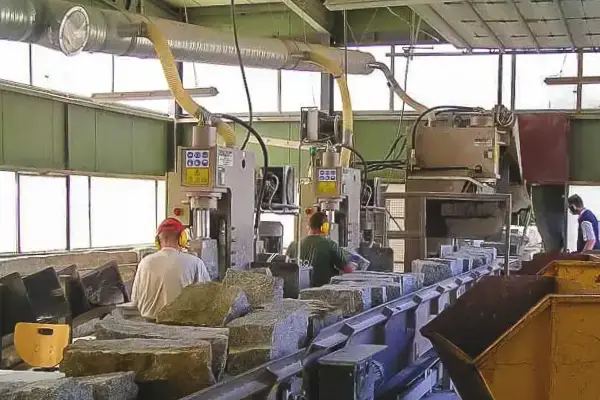

Possibility of connecting an dust extraction unit
All our machines are ready for an extraction system, which we can also offer you or you can choose your own.

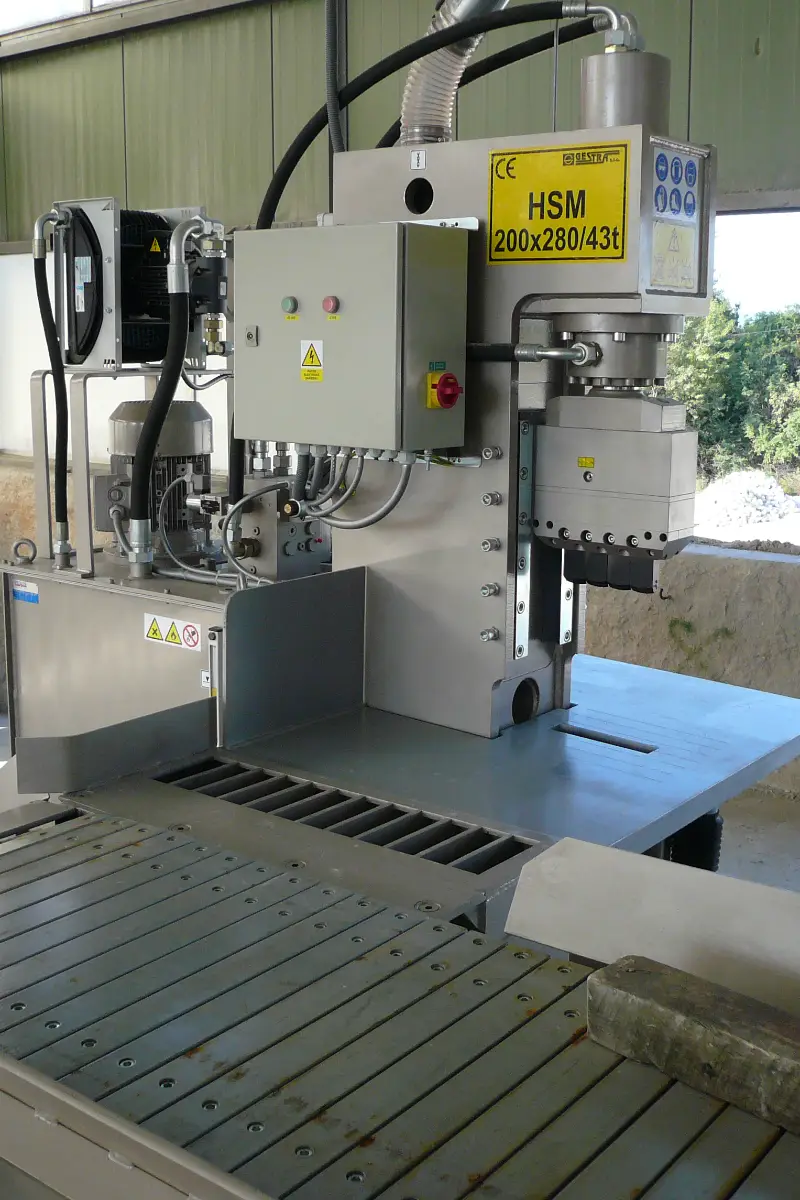

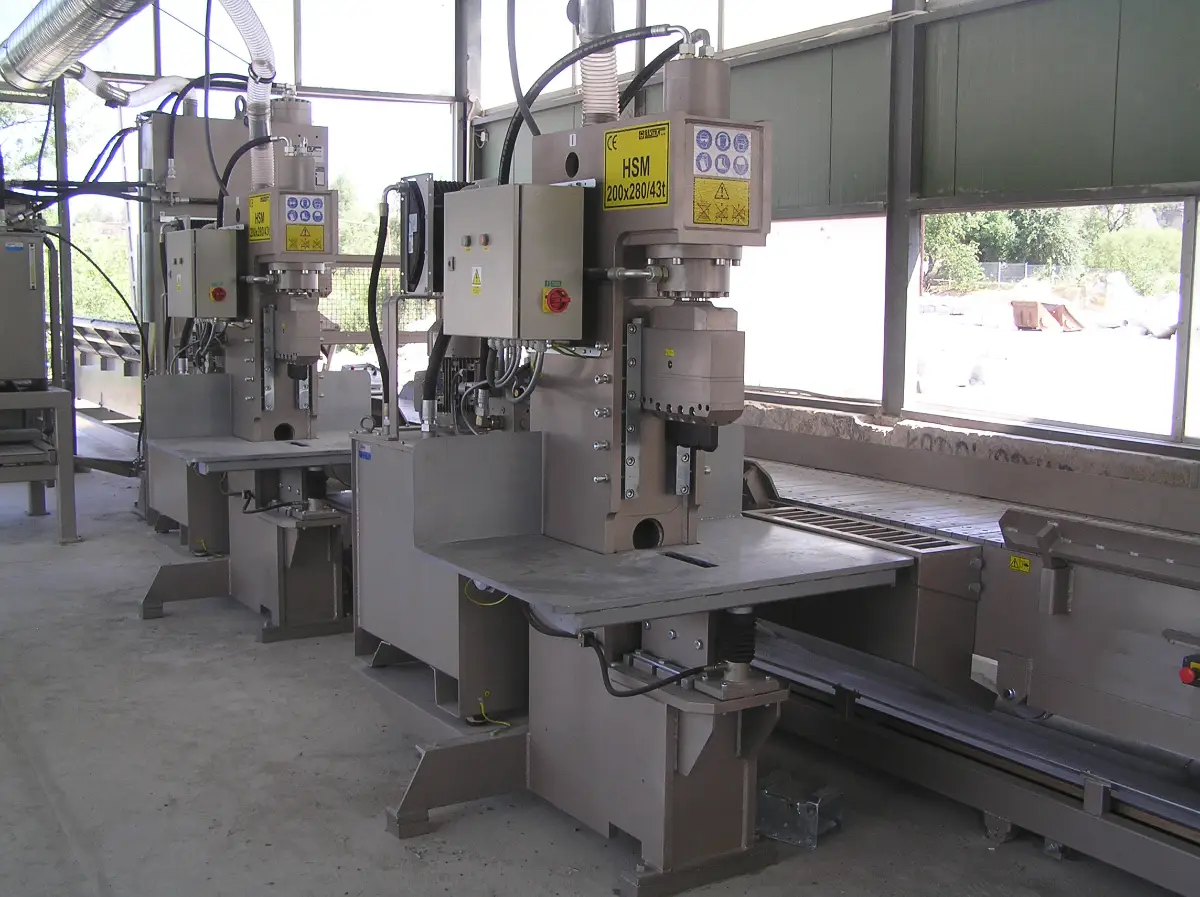

HSM 200:
Unrivalled performance thanks to high speed
As standard, we use paving stone splitters with a splittin power of 43 t. These machines generally have sufficient power to split the stone of the required size and, thanks to a smaller hydraulic cylinder and a special hydraulic unit, achieve up to 25% more performance than other similar machines.
Low power consumption (up to 25% energy saving)
Thanks to our hydraulic pump, we can use motors with a power of 5.5 kW, which saves approximately 25% energy compared to machines with a power of 7.5 kW. Operation is not only more economical, but also more environmentally friendly.

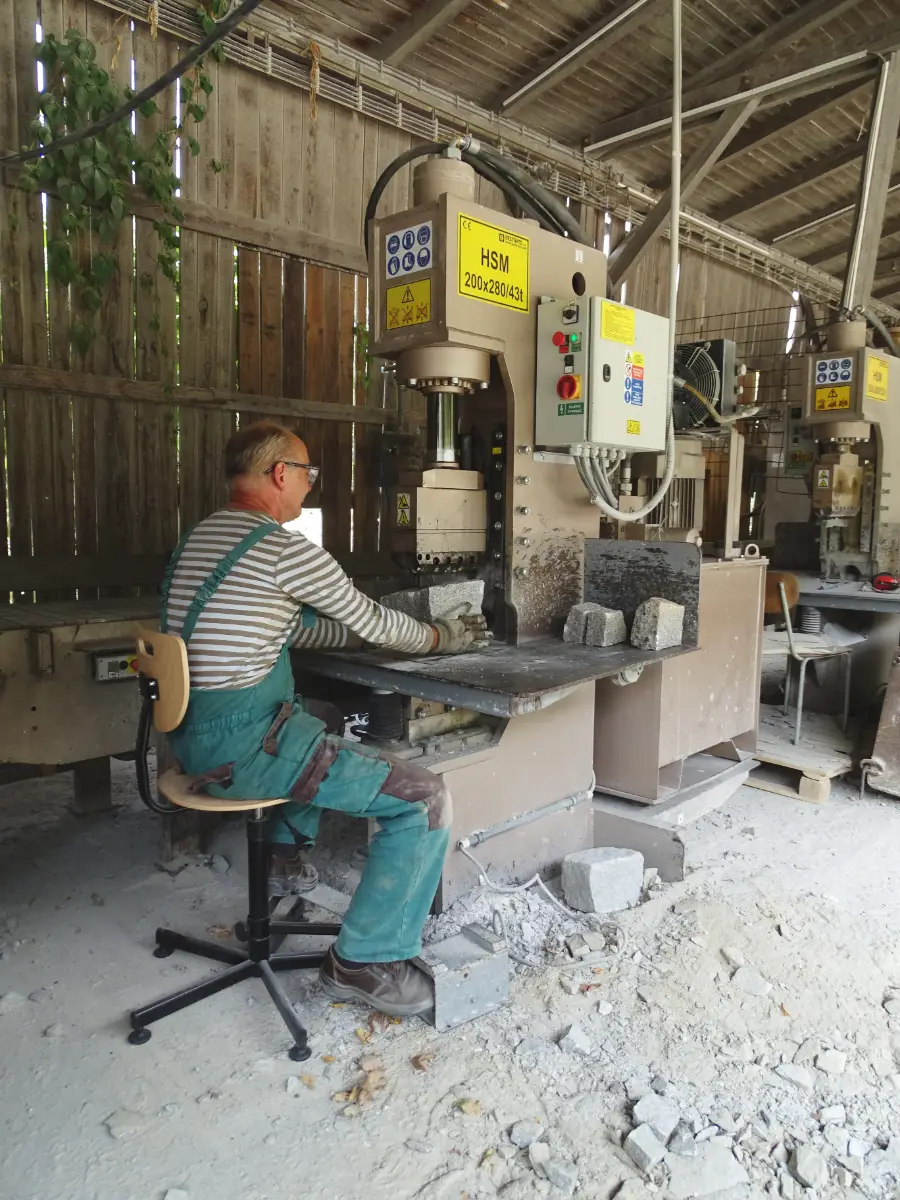

Working while seated
The design of our machines is designed to allow seated work, which is more ergonomic for the operator, working on the machine puts less strain on the back muscles, which reduces fatigue and increases the performance on the machine.
SLG:
Unrivalled performance

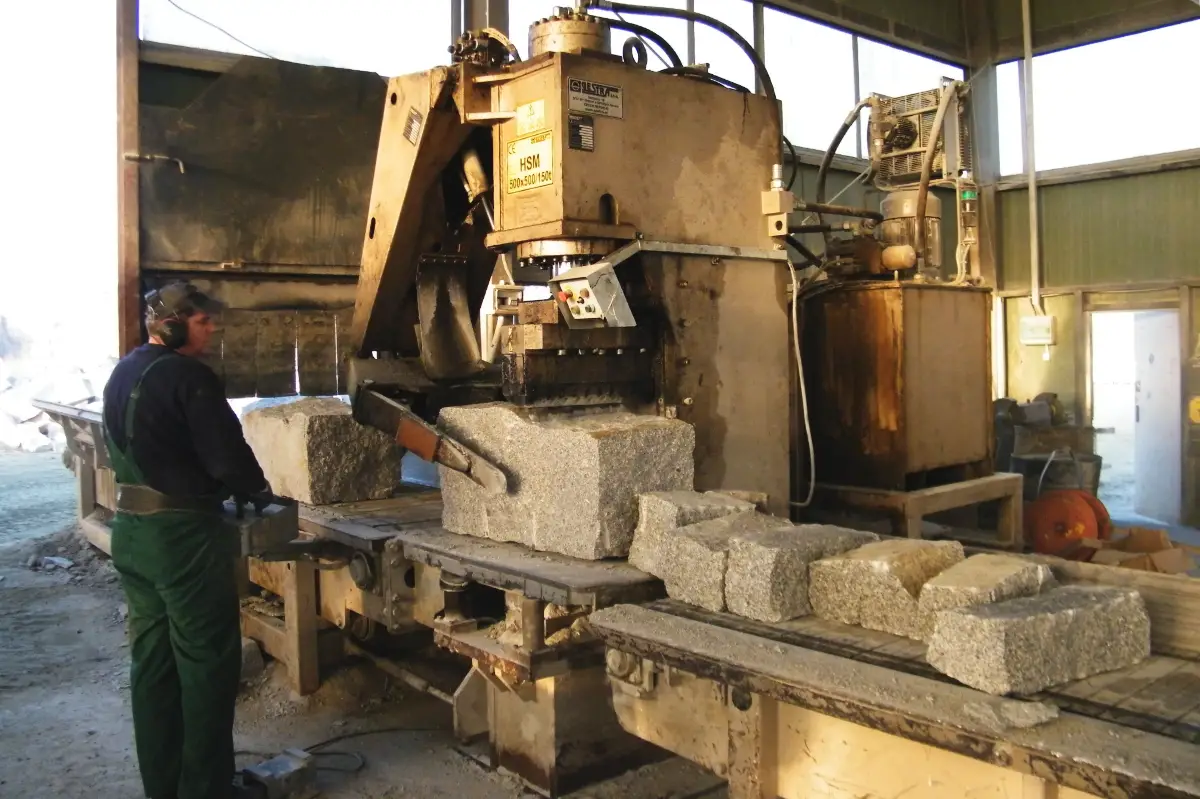

Combining a unique manipulator, an optimally long conveyor and a splitter equipped with a special hydraulic system, you can achieve unrivalled production performance and a significant reduction in operating costs. The splitters are designed to process regular or irregular stone as efficiently as possible. They can process up to 50 - 60 tons per shift. A special hydraulic system with cooling unit, used exclusively by Gestra, gives the splitters high performance and the ability to split even the hardest stones.
Easy handling of processed stones

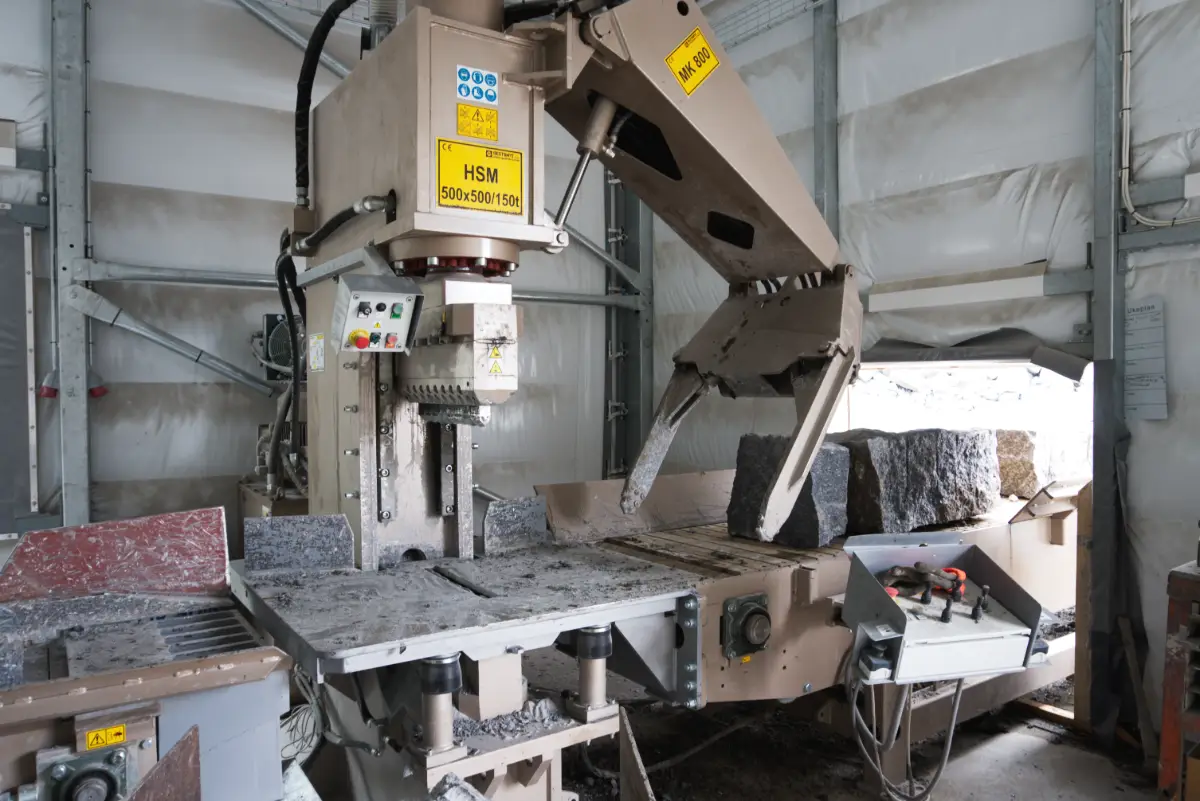

The unrivalled features of the MK manipulator ensure easier handling of the stone blocks. It can be used to move long stones and place them precisely under the splitting head, and once a piece of stone has been split off, it can be turned and tilted in all directions.
Precise splitting of even long blocks
A conveyor with special chains is attached to the splitting table of the splitter, which descends with the table when splitting. This design allows the splitting of long stones without the risk of damaging the table or the conveyor, the splitting takes place only between the teeth and thus increases the quality of the split surface. The stone does not "wobble" on the table during splitting. The robust construction of the conveyor guarantees a long service life. The floating knives that adapt to the shape of the stone also help to increase the quality of the split surface.
Layouts
How many small splitters do I need?
- the number of small machines depends on the ratio of production of larger and smaller products
- SLG 12 for building stone produciton and low volume of cobblestones produciton or thin veneers produciton
- SLG 13 for curbstones and paving stones
- SLG 14 and 15 for only paving stones production

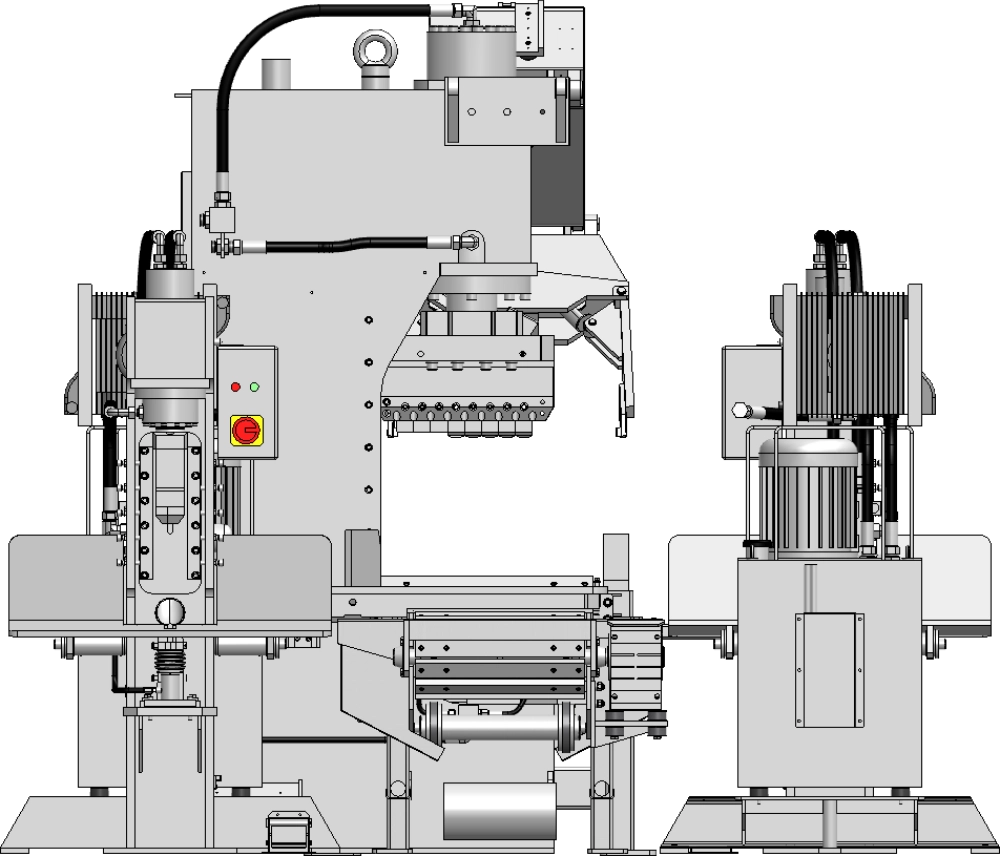

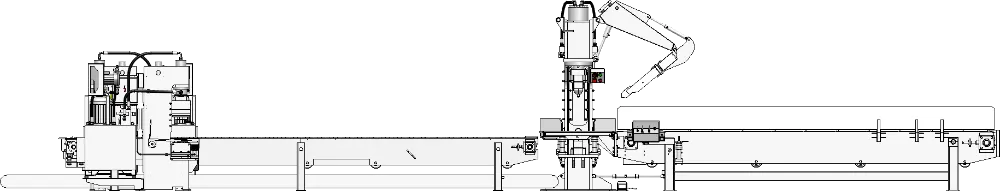

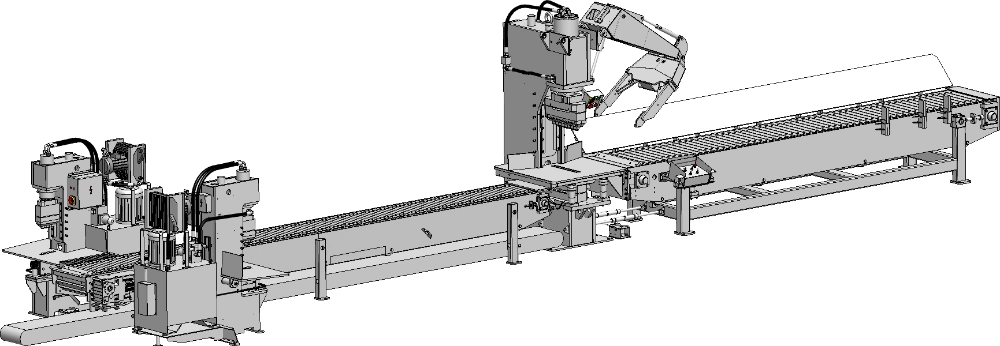

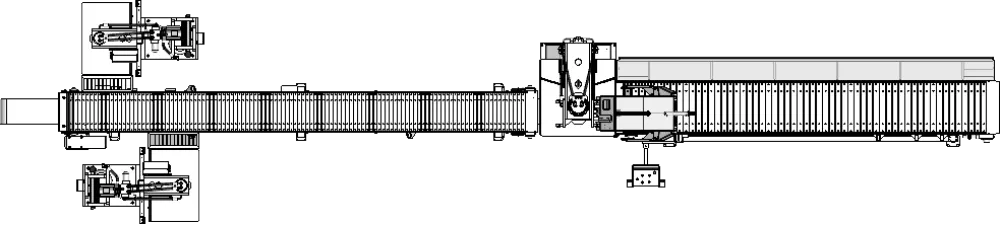

SLG 12
1 x line SLG with manipulator arm and conveyor - 50 or 60 cm splitting tool, 150 or 180 t splitting power
2 x HSM 200 splitting machines, 43t splitting power (or 53, 63 t) - for specific usecases combination of differenct machines sizes is possible (HSM 300, HSM 400 or SHS)

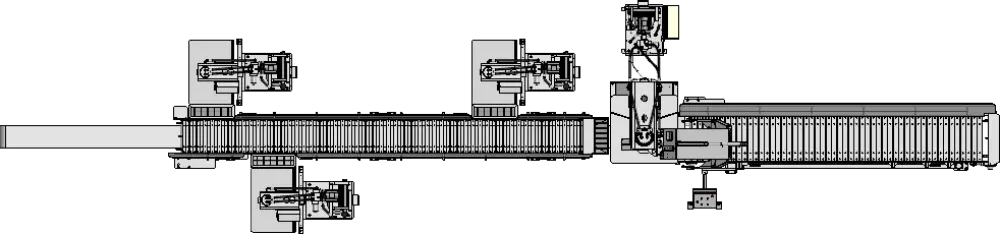

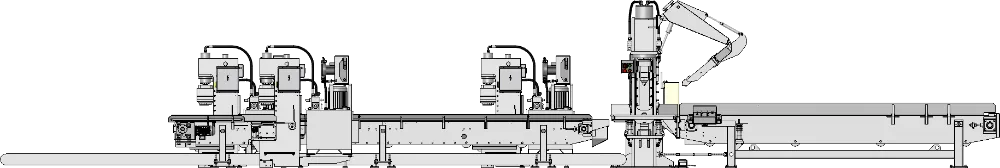

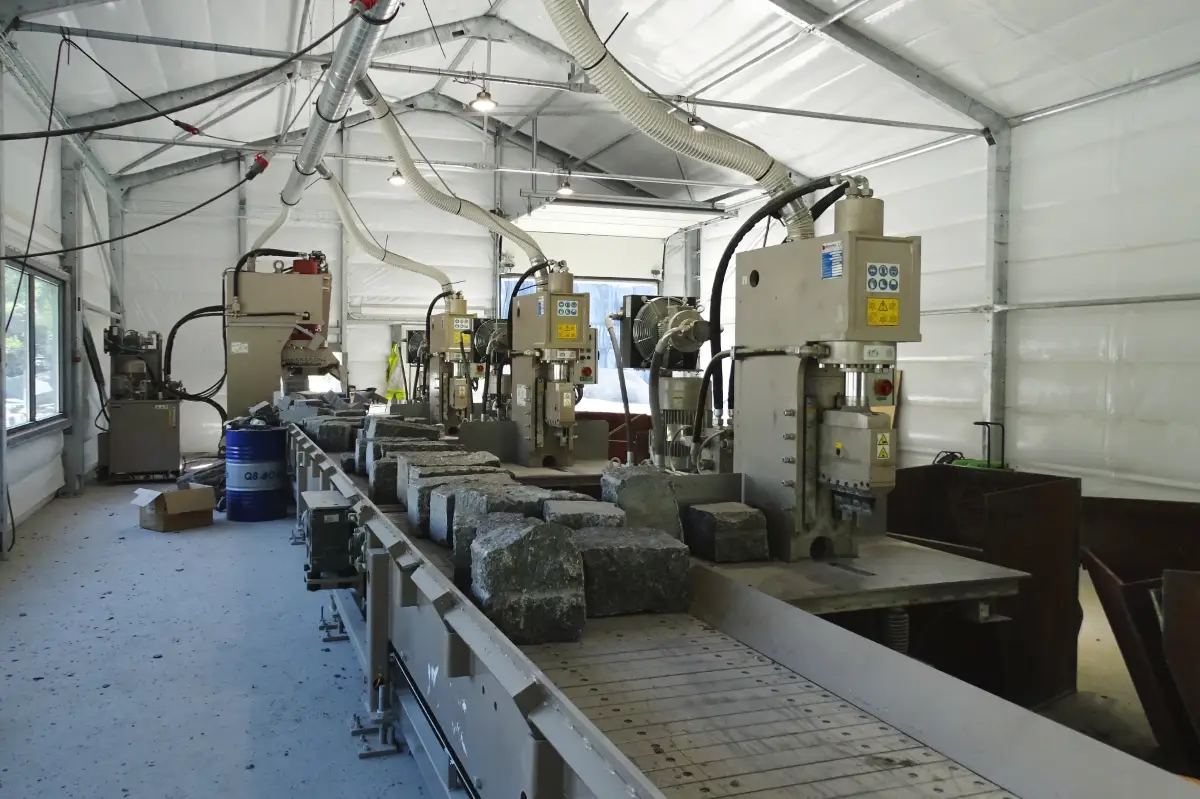

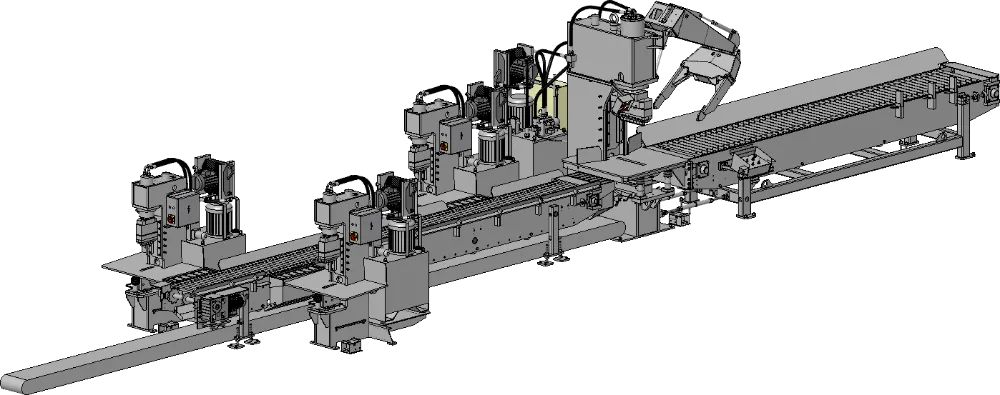

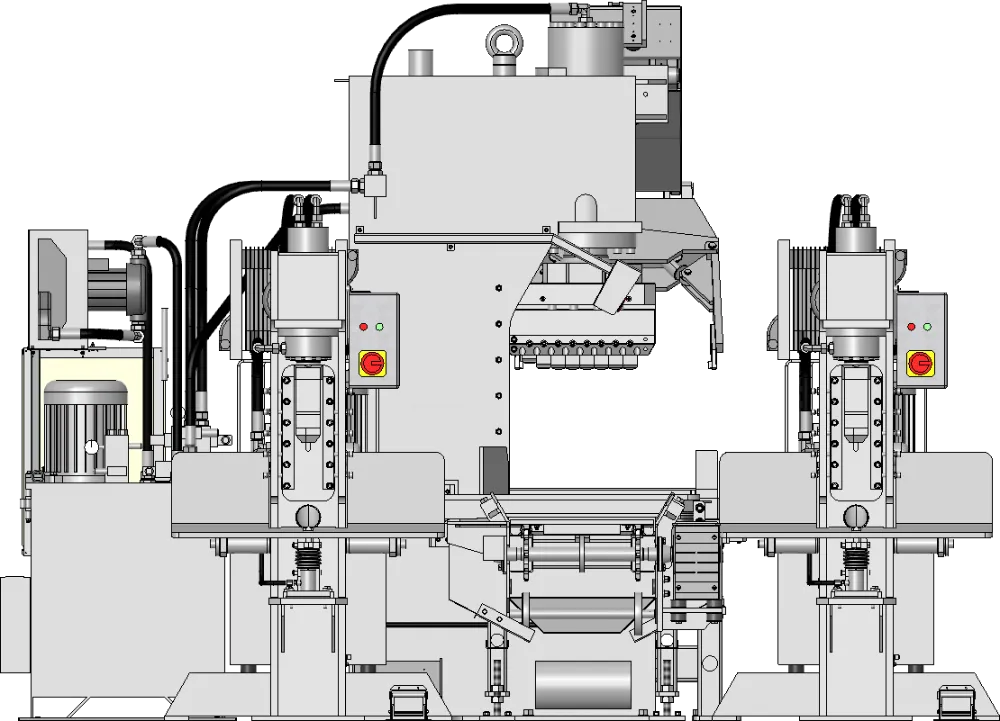

SLG 13
1 x line SLG with manipulator arm and conveyor - 50 or 60 cm splitting tool, 150 or 180 t splitting power
3 x HSM 200 splitting machines, 43t splitting power (or 53, 63 t) - for specific usecases combination of differenct machines sizes is possible (HSM 300, HSM 400 or SHS)

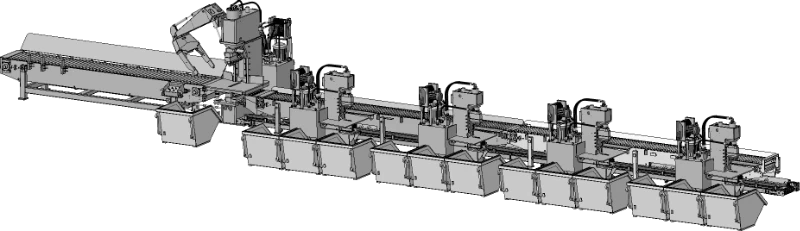

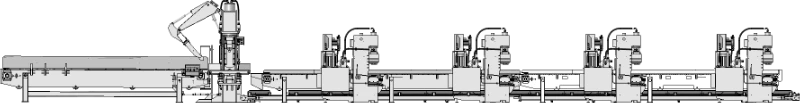

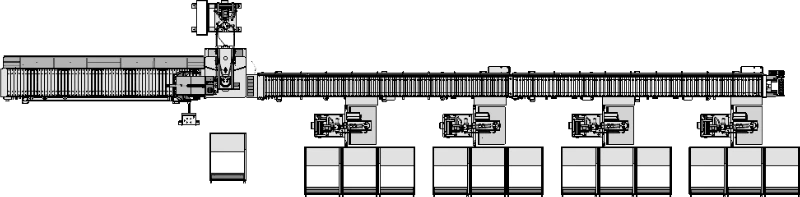

SLG 14
1 x line SLG with manipulator arm and conveyor - 50 or 60 cm splitting tool, 150 or 180 t splitting power
4 x HSM 200 splitting machines, 43t splitting power (or 53, 63 t) - for specific usecases combination of differenct machines sizes is possible (HSM 300, HSM 400 or SHS)

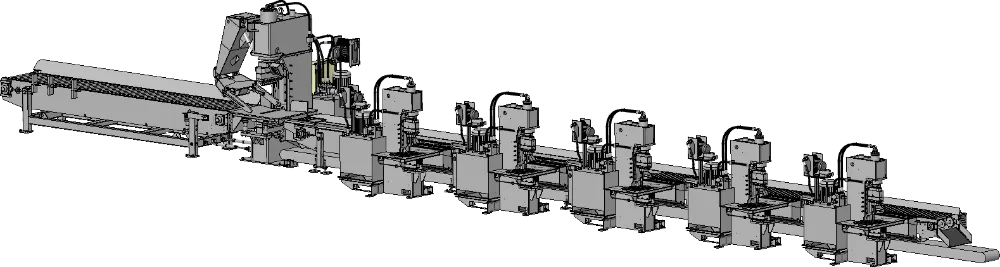

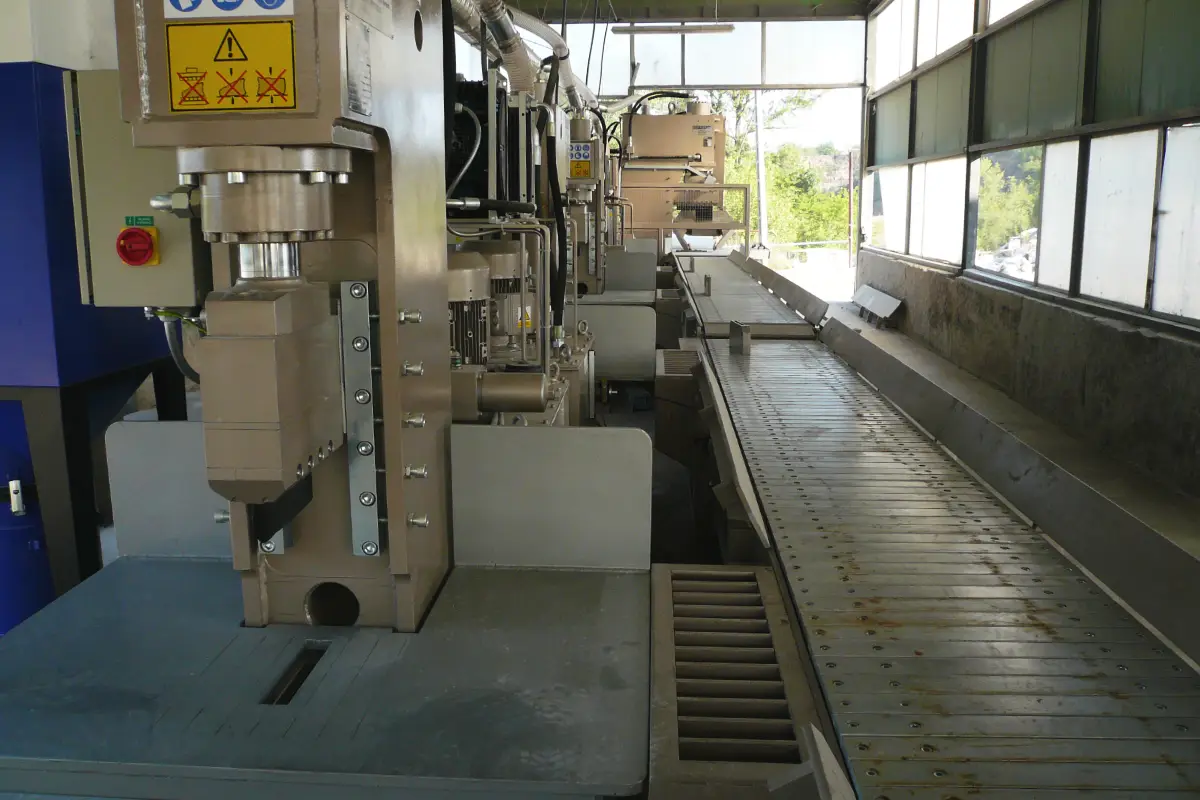

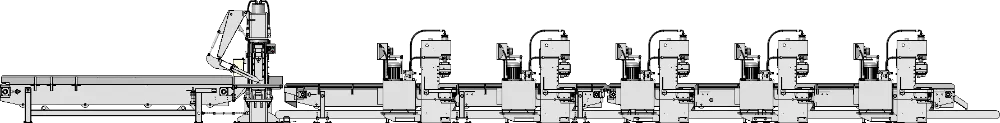

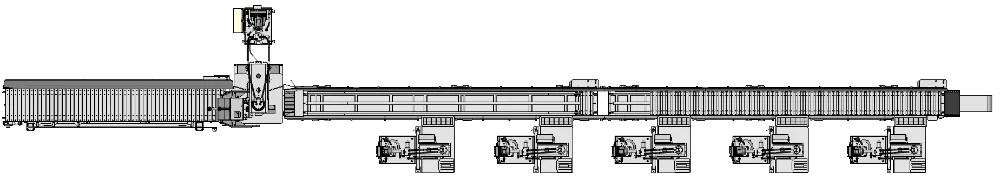

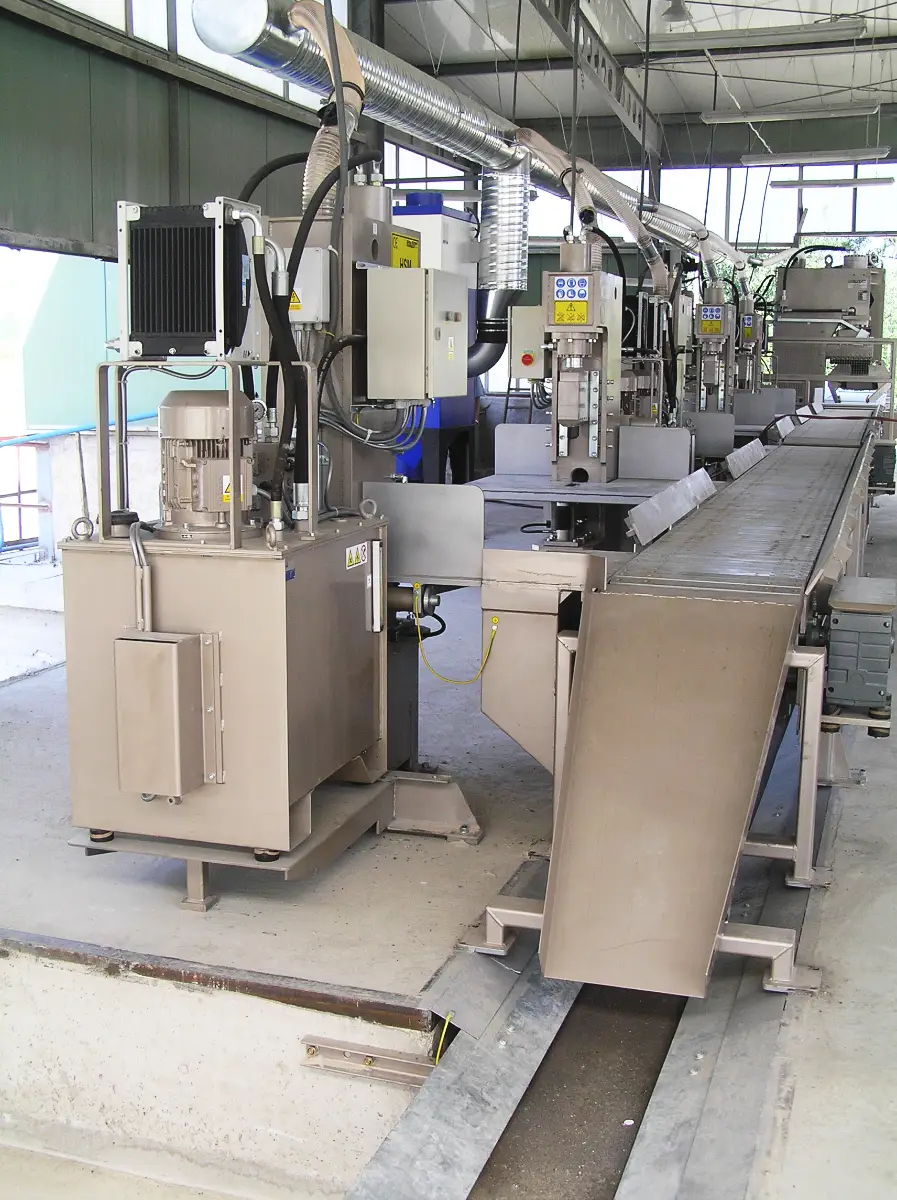

SLG 15

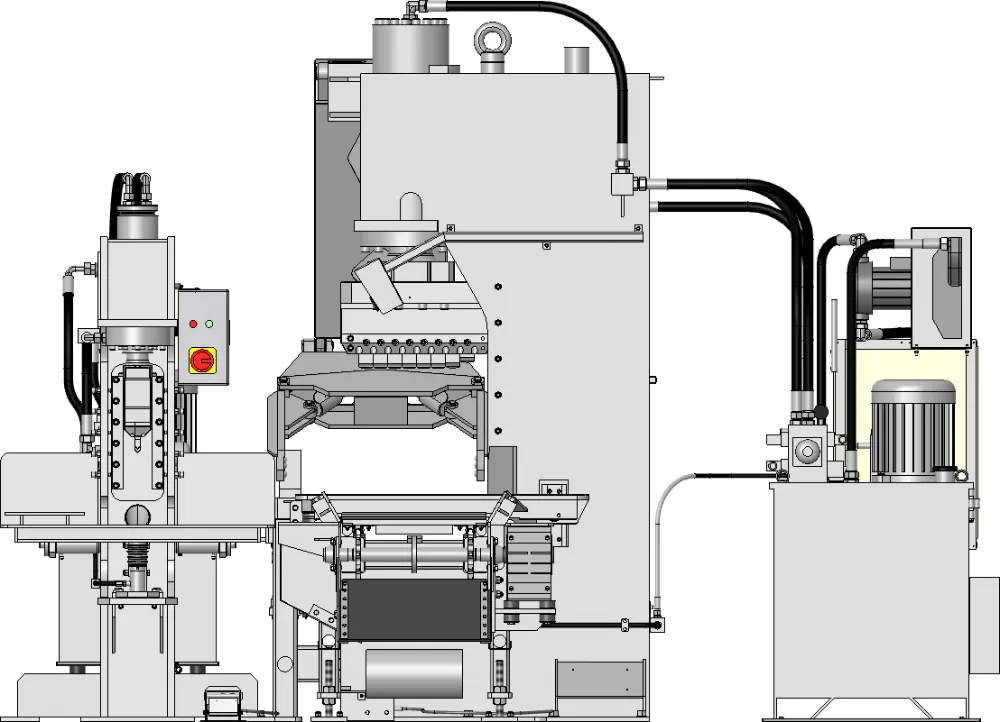

1 x line SLG with manipulator arm and conveyor - 50 or 60 cm splitting tool, 150 or 180 t splitting power
5 x HSM 200 splitting machines, 43t splitting power (or 53, 63 t) - for specific usecases combination of differenct machines sizes is possible (HSM 300, HSM 400 or SHS)
