Main advantages
Variable setting of split layer thickness
Precision splitting
High performance compared to manual splitting
Easy control without the necessity of manually handling heavy stones
Reliability and long service life
Description

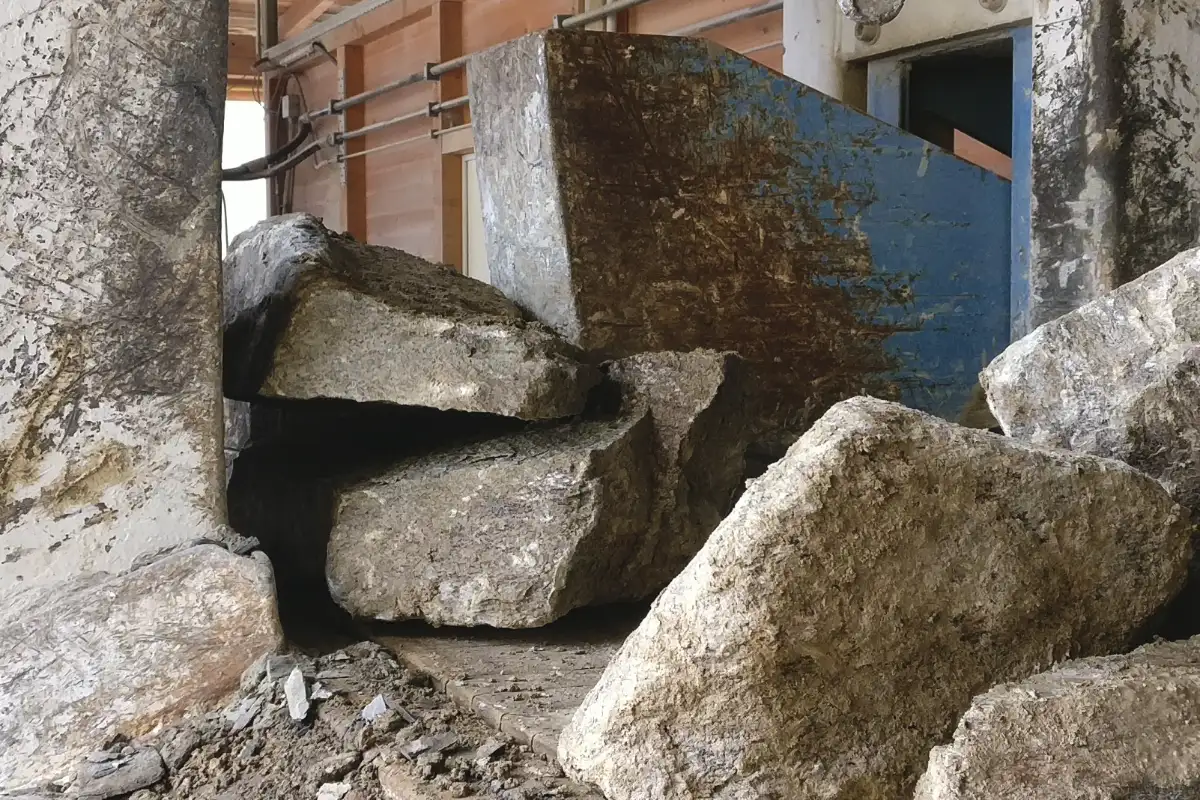

Some types of horizontally layered rocks can be split from the side (horizontally). This mainly concerns gneiss, slate and sandstone.

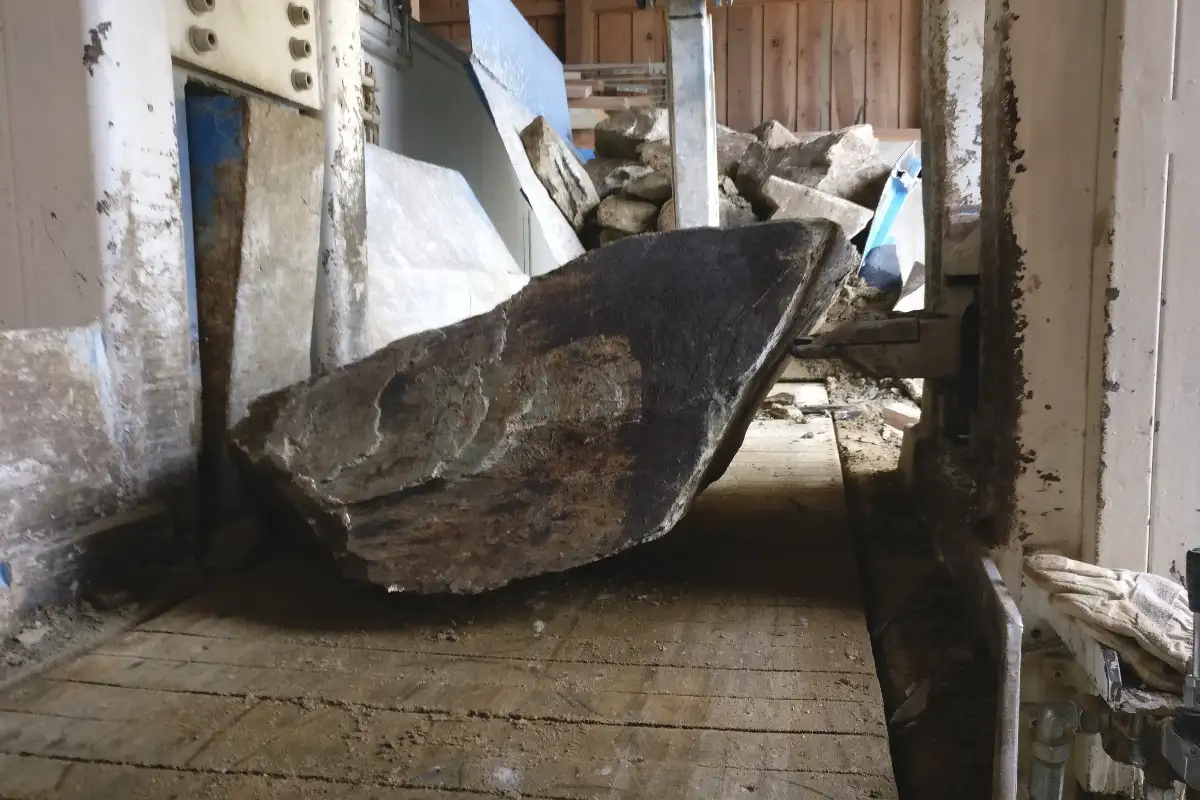

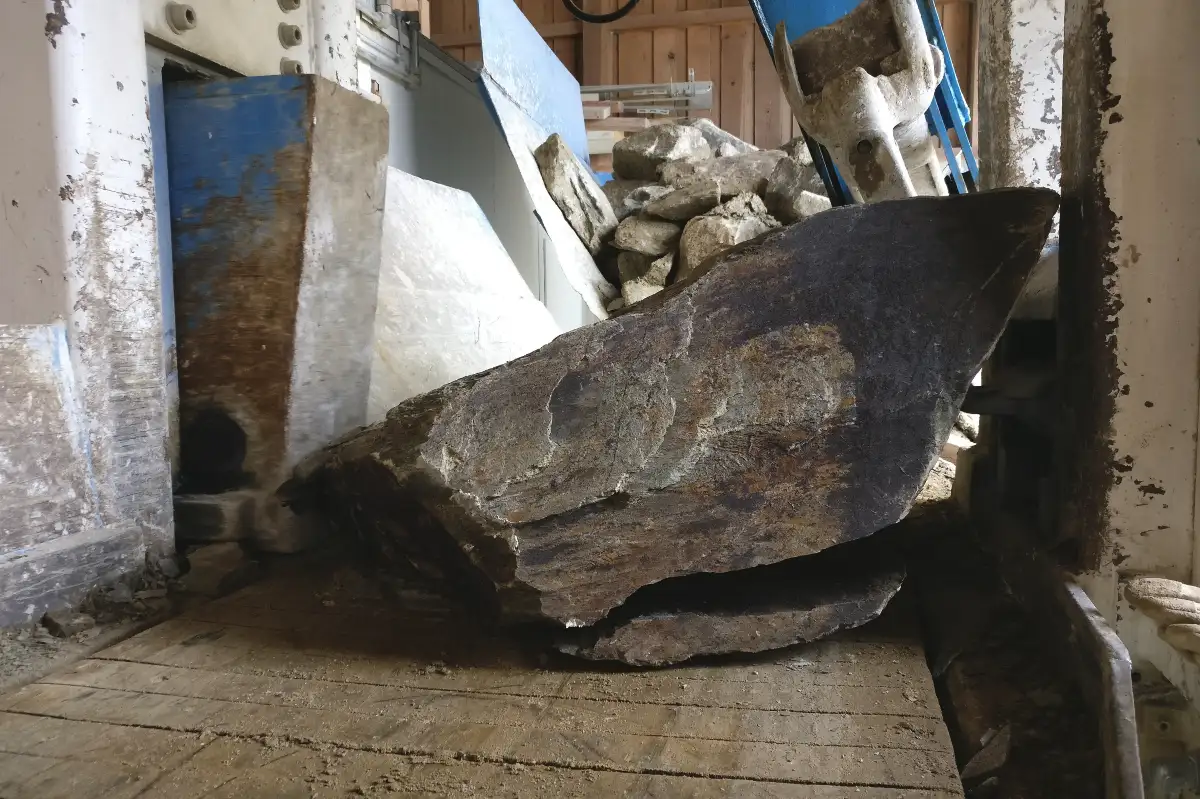

Floating, atypically installed side knives help split layered stones into slabs. This exceptional design makes it possible to produce slabs of the desired thickness. Thickness of the slab is set by the operator as required. Splitters divide layered stones into slabs with great precision.

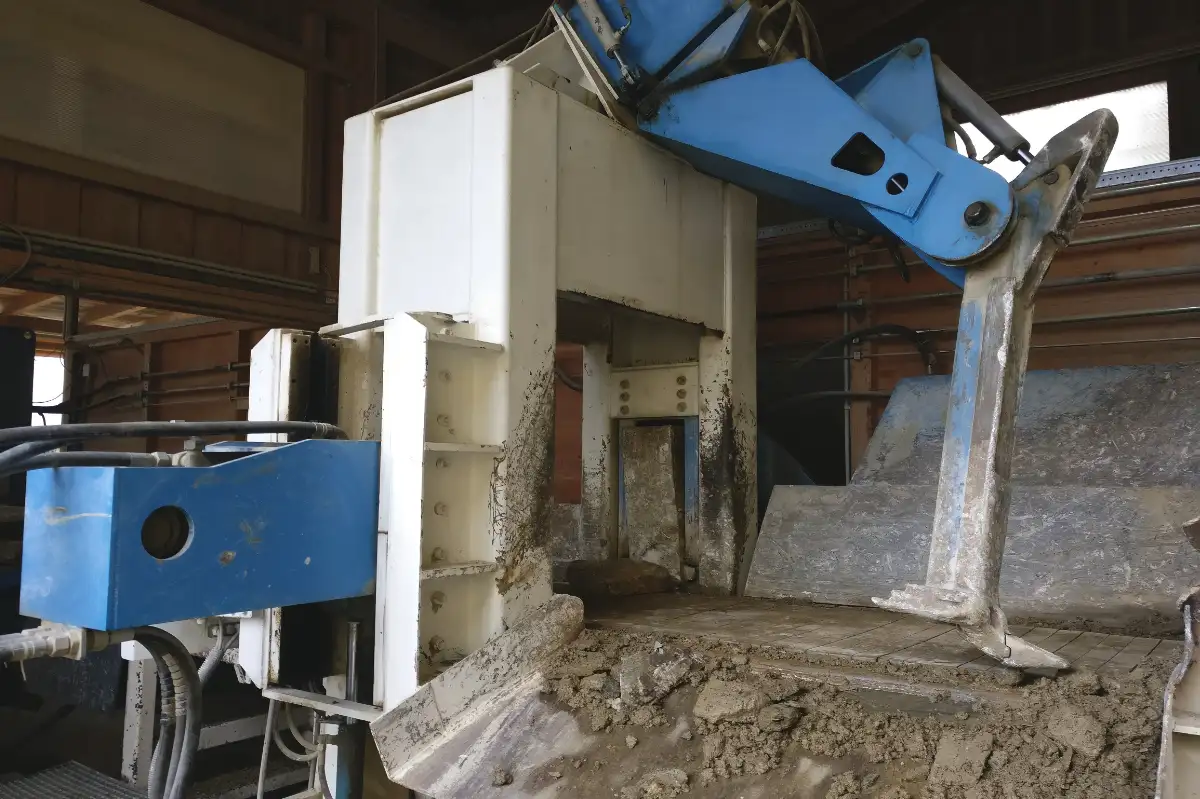

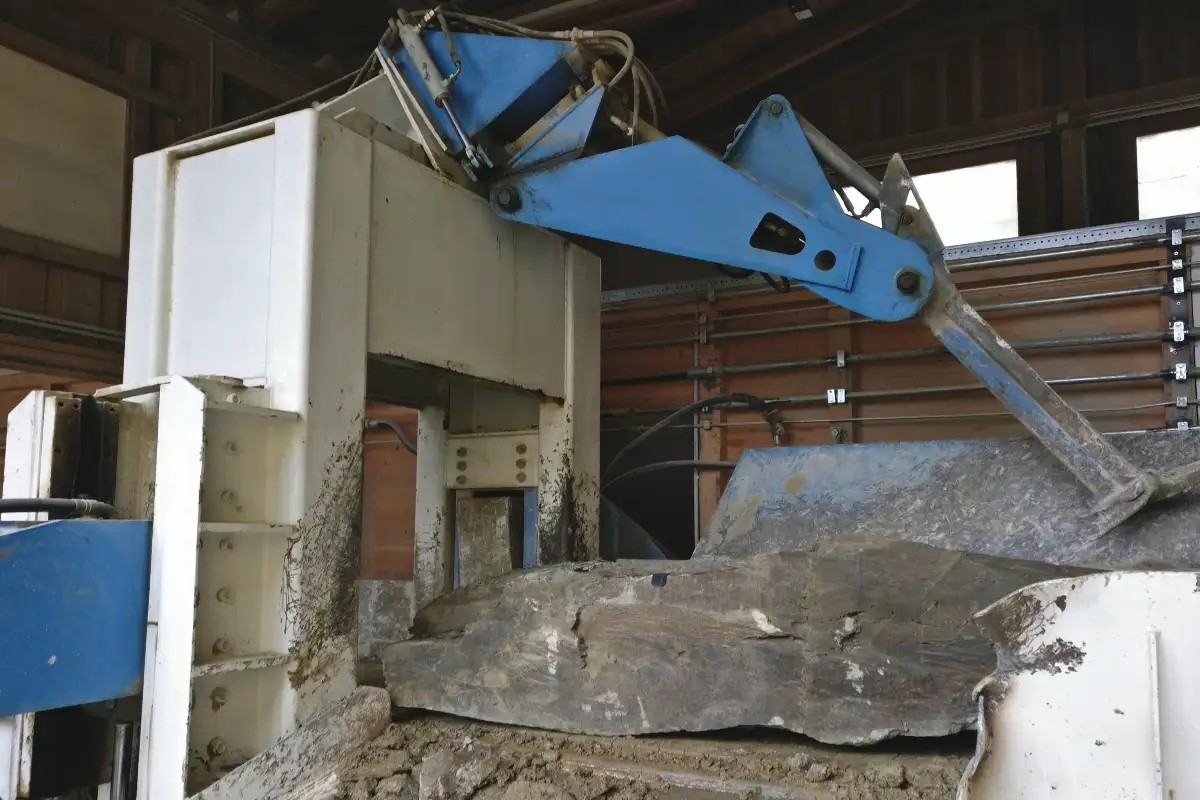

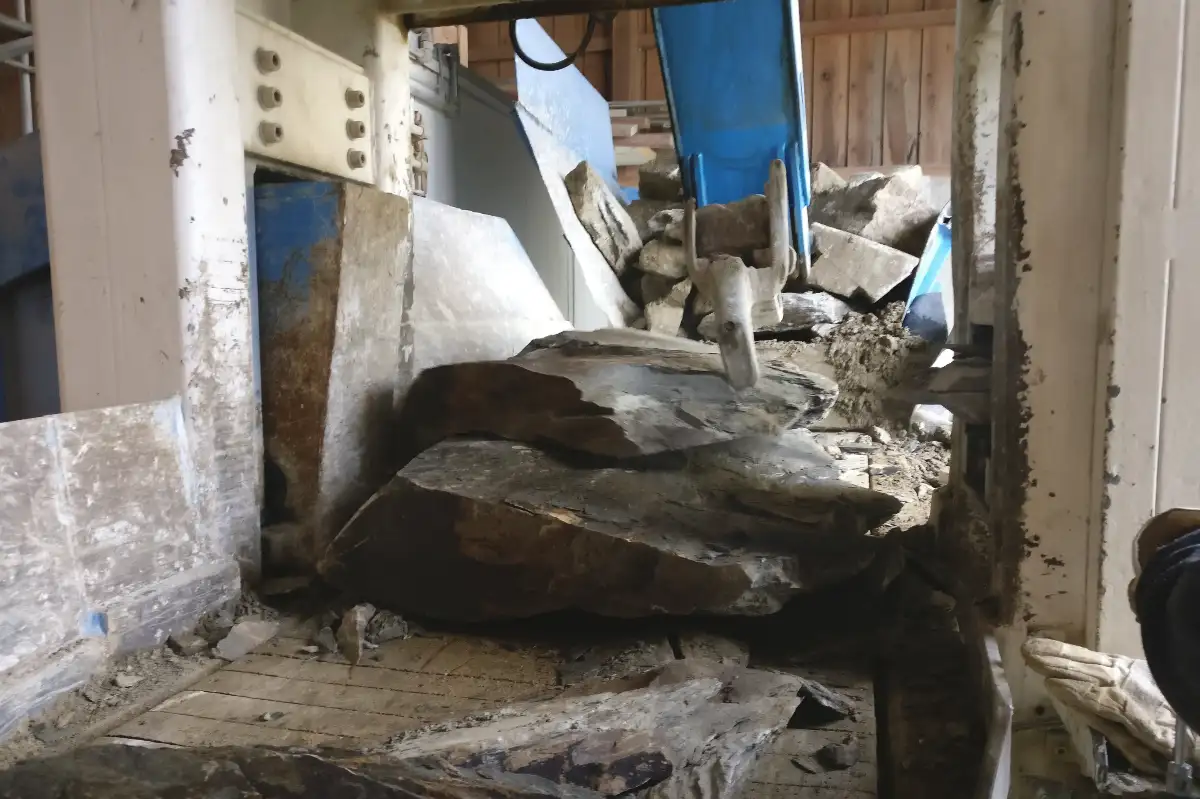

The splitter is equipped with a manipulator for continuous removal of the split slabs. Simple handling using the control panel is a matter of course. The splitter is positioned between the conveyors, behind which small splitters can be placed for further processing of the split slabs. A production line consists of such a set.
A typical feature of Gestra machines is that the splitters for layered stones also have a robust design that ensures long durability.
Technical parameters
SLH 600 series
| metric units | imeprial units | |
| Tool length: | 400 mm | ~ 15 3/4" |
| Stroke: | 400 mm | ~ 15 3/4" |
| Splitting power: | 100 or 120 t | ~ 110 or 130 US ton |
| Number of splitting teeth: | 8 + 8 pcs | 8 + 8 pcs |
| Main dimensions | ||
| Width: | 1140 mm | 45" |
| Length: | 2130 mm | 84" |
| Height: | 2550 mm | 100" |
| Weigth: | 3 800 kg | 8 400 lbs |
| Hydraulic unit | ||
| Nominal pressure: | 300 bar | ~ 4 350 psi |
| Oil tank filling: | 240 l | ~ 63 gal |
| Electrical system | 50 Hz | 60 Hz |
| Main motor: | 11 kW | ~ 14.75 HP |
| Cooling unit: | 0,75 kW | ~ 1 HP |
| Heating coil: | 1,3 kW | ~ 1.75 HP |
SLH 800 series
| metric units | imeprial units | |
| Tool length: | 400 mm | ~ 15 3/4" |
| Stroke: | 400 mm | ~ 15 3/4" |
| Splitting power: | 100 or 120 t | ~ 110 or 130 US ton |
| Number of splitting teeth: | 8 + 8 pcs | 8 + 8 pcs |
| Main dimensions | ||
| Width: | 1140 mm | 45" |
| Length: | 2130 mm | 84" |
| Height: | 2550 mm | 100" |
| Weigth: | 3 800 kg | 8 400 lbs |
| Hydraulic unit | ||
| Nominal pressure: | 300 bar | ~ 4 350 psi |
| Oil tank filling: | 240 l | ~ 63 gal |
| Electrical system | 50 Hz | 60 Hz |
| Main motor: | 11 kW | ~ 14.75 HP |
| Cooling unit: | 0,75 kW | ~ 1 HP |
| Heating coil: | 1,3 kW | ~ 1.75 HP |
SLH 1200 series
| metric units | imeprial units | |
| Tool length: | 400 mm | ~ 15 3/4" |
| Stroke: | 400 mm | ~ 15 3/4" |
| Splitting power: | 100 or 120 t | ~ 110 or 130 US ton |
| Number of splitting teeth: | 8 + 8 pcs | 8 + 8 pcs |
| Main dimensions | ||
| Width: | 1140 mm | 45" |
| Length: | 2130 mm | 84" |
| Height: | 2550 mm | 100" |
| Weigth: | 3 800 kg | 8 400 lbs |
| Hydraulic unit | ||
| Nominal pressure: | 300 bar | ~ 4 350 psi |
| Oil tank filling: | 240 l | ~ 63 gal |
| Electrical system | 50 Hz | 60 Hz |
| Main motor: | 11 kW | ~ 14.75 HP |
| Cooling unit: | 0,75 kW | ~ 1 HP |
| Heating coil: | 1,3 kW | ~ 1.75 HP |
