Main advantages

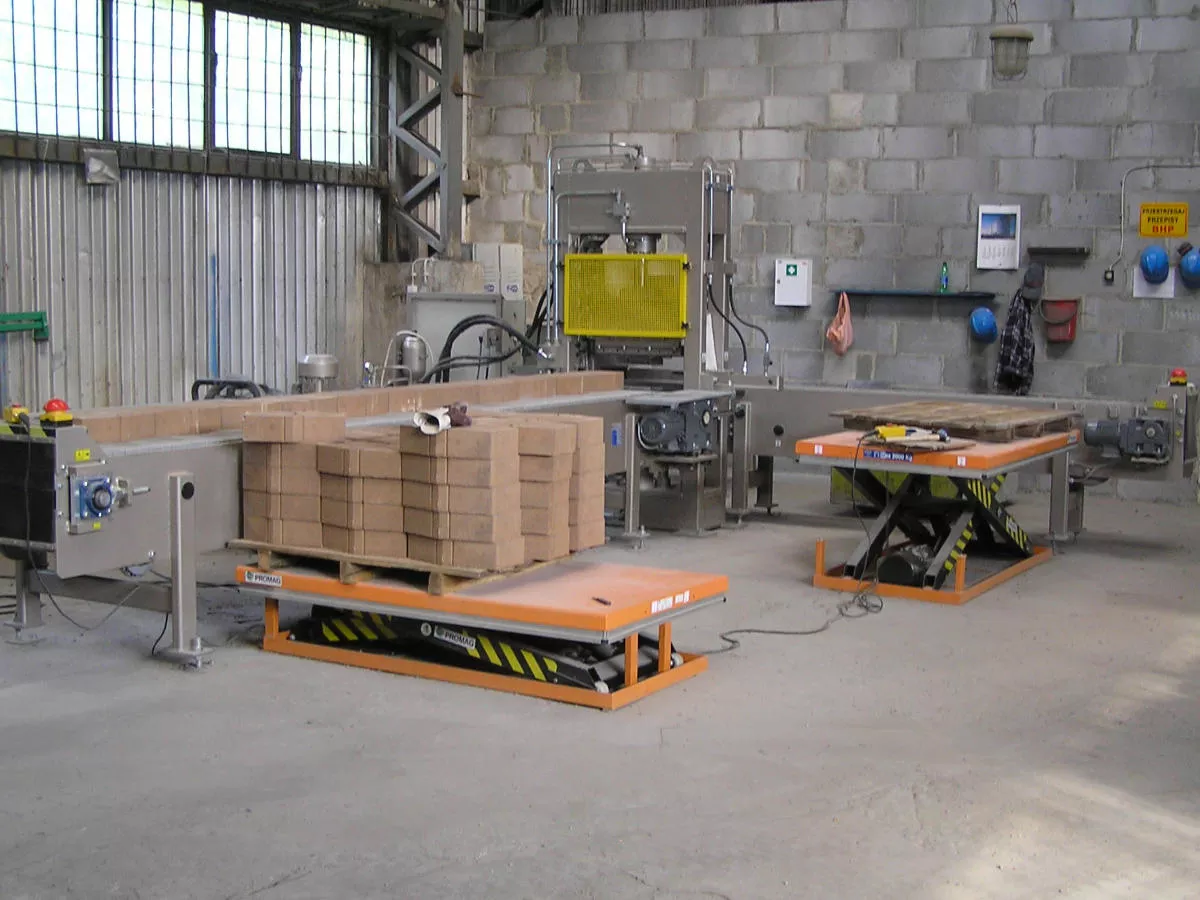

Fully automated splitting operation, including loading and palletizing

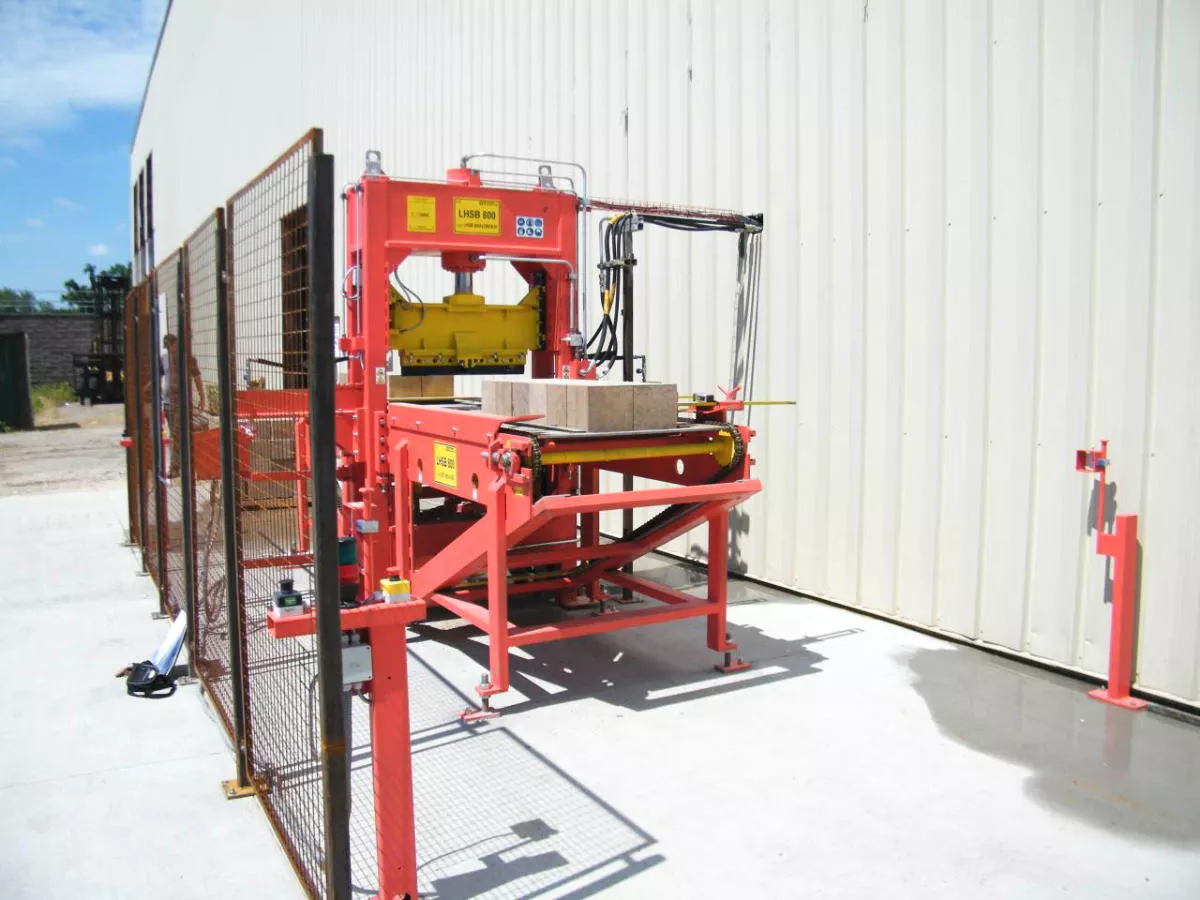

Splitting machine with both the loading and unloading conveyor
Splitting of the entire palette layer
With side teeth and hydraulic shock for higher product quality
Optional programming and setting of required parameters
Optional interconnection with a robot and online interconnection with a concreting plant
Description
Products
Split wall blocks, Split palisades, Split face post blocks

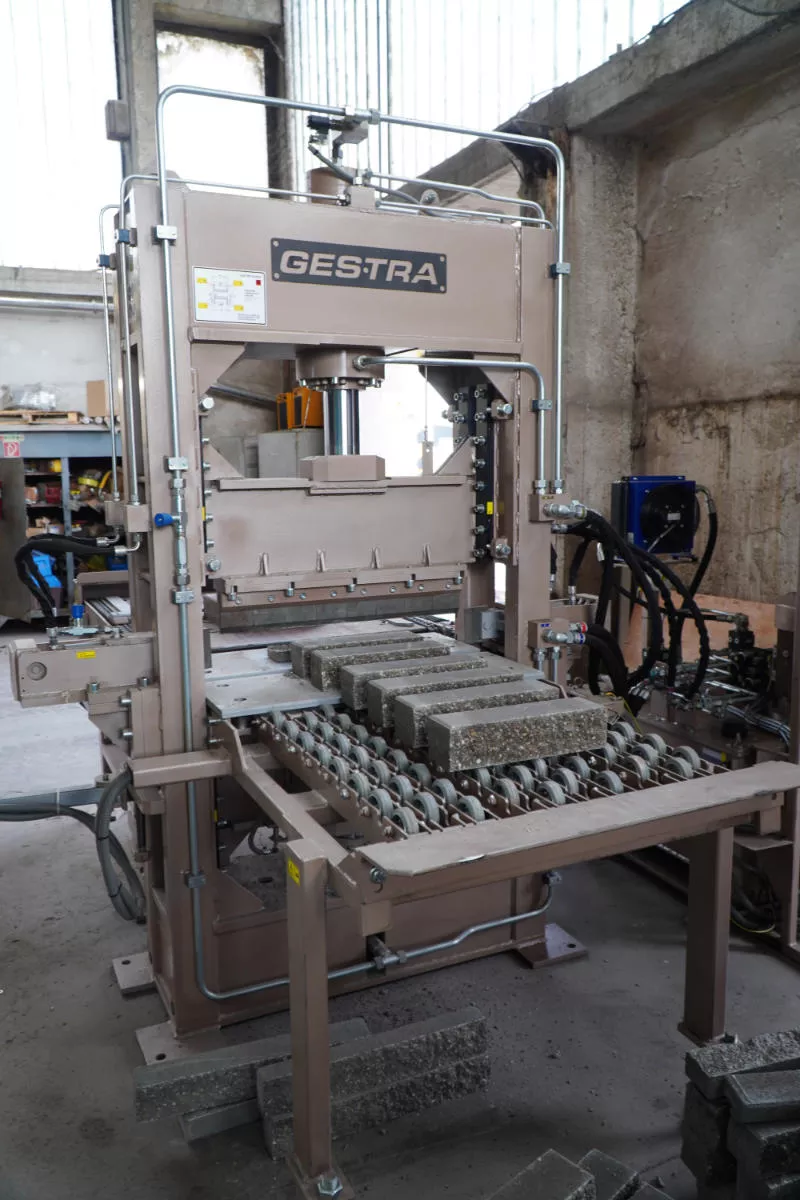

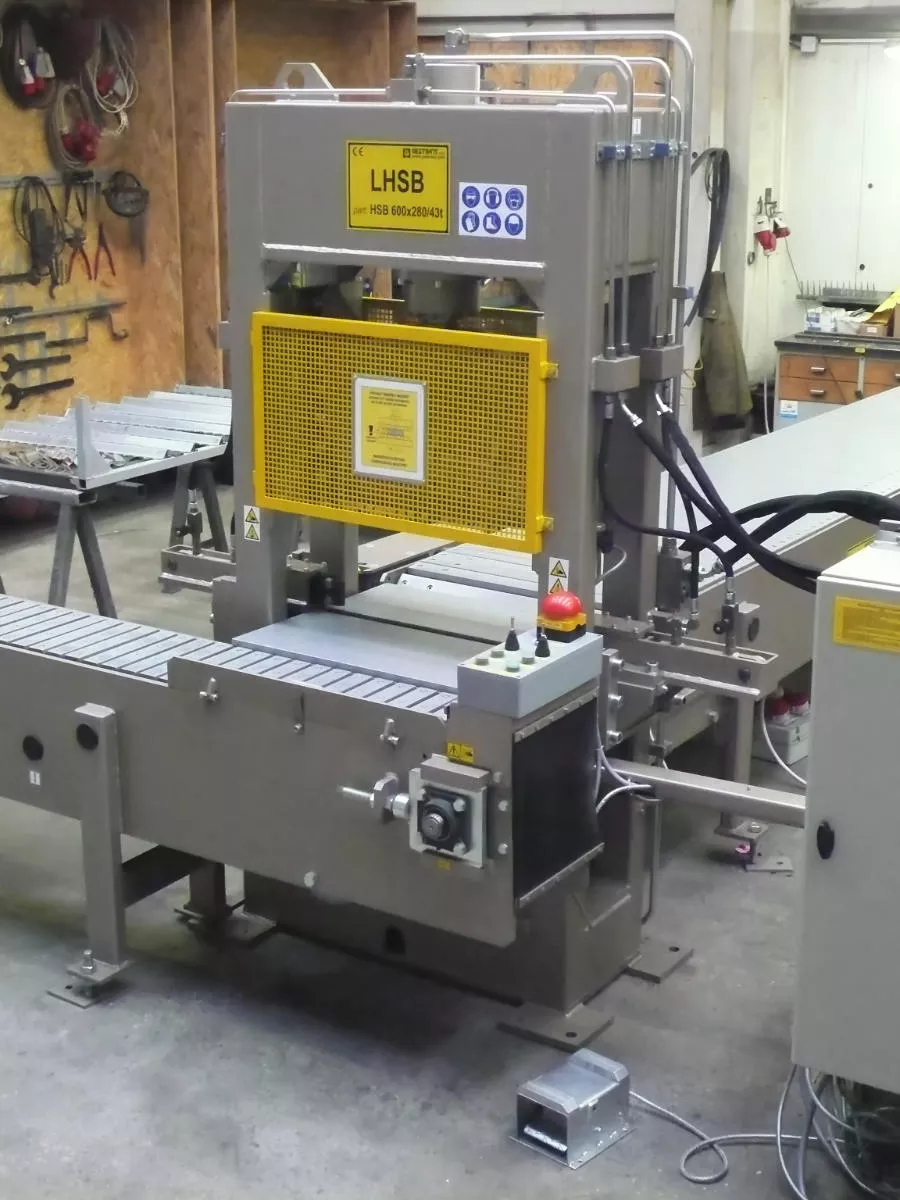

Machine description
Push plate

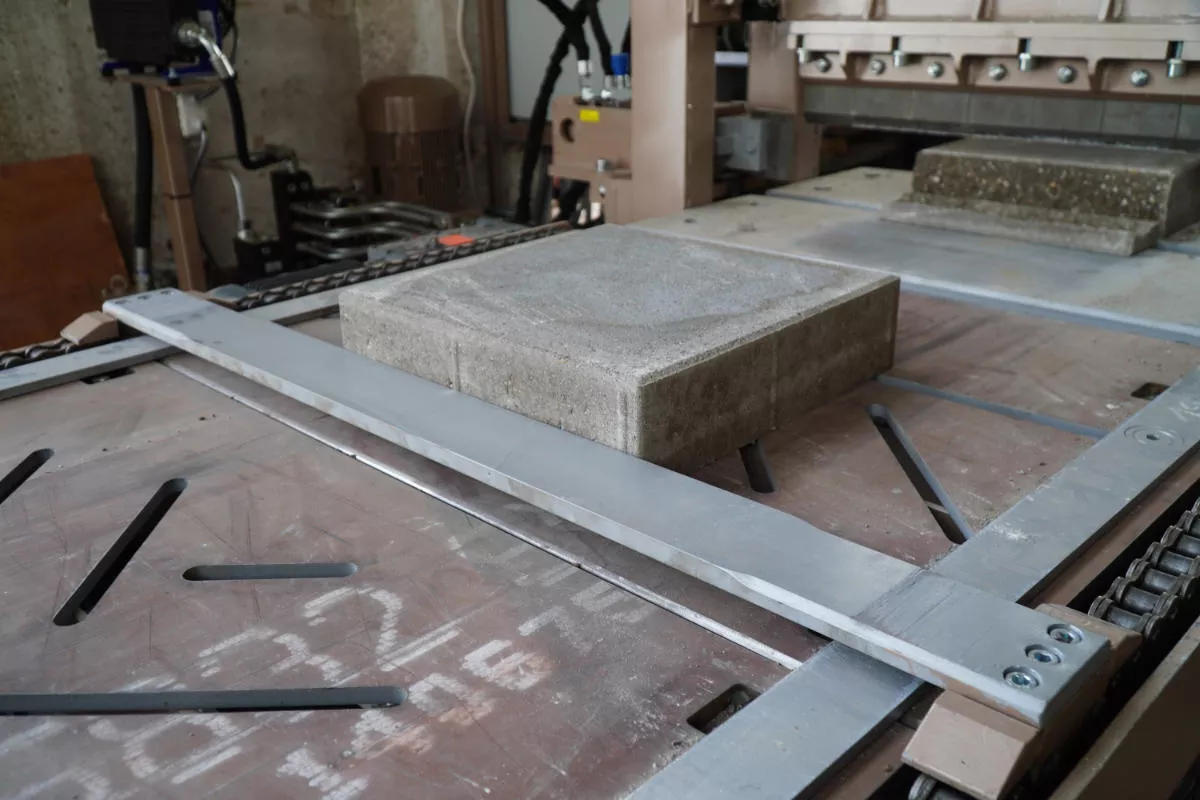

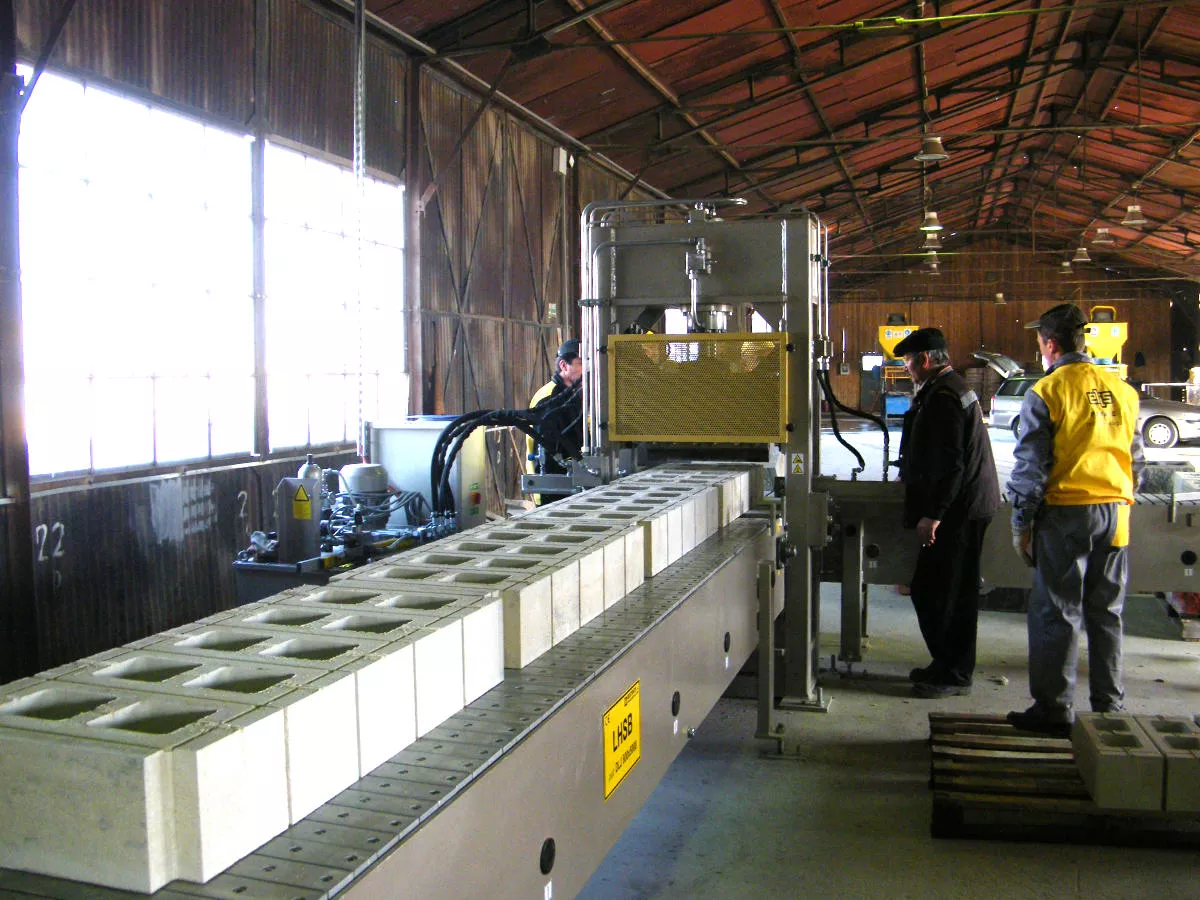

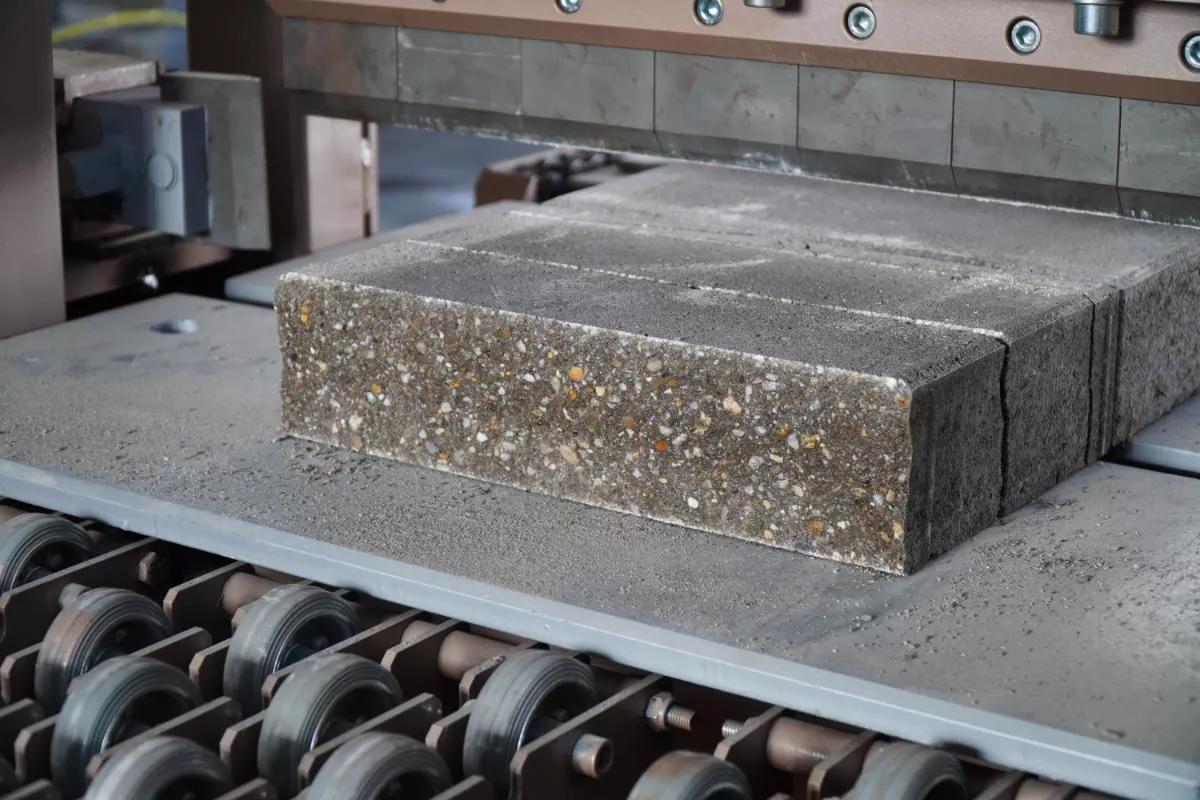

A conveyor with special chains is attached to the splitting table of the splitter, which descends with the table when splitting. This design allows the splitting of long stones without the risk of damaging the table or the conveyor, the splitting takes place only between the teeth and thus increases the quality of the split surface. The stone does not "wobble" on the table during splitting. The robust construction of the conveyor guarantees a long service life. The floating knives that adapt to the shape of the stone also help to increase the quality of the split surface.

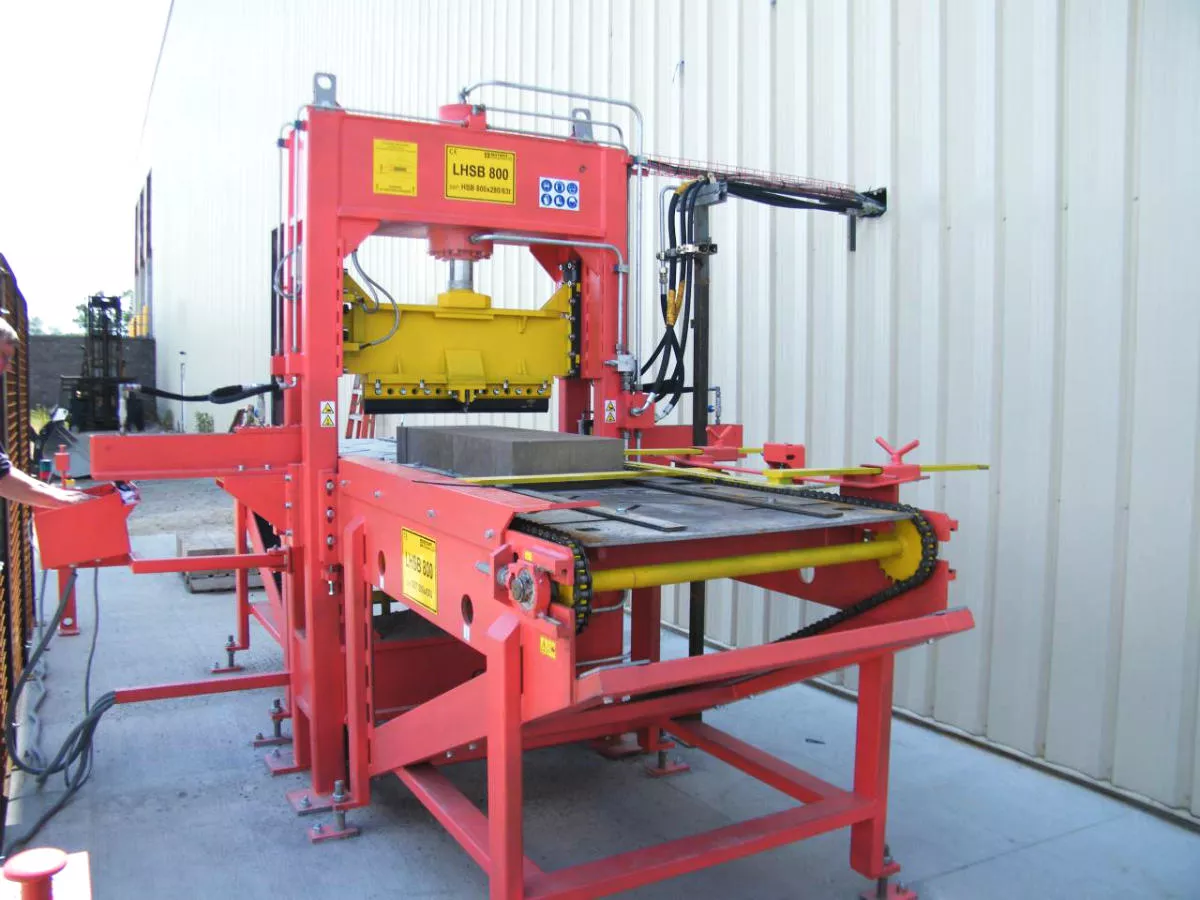

Chain rod conveyor

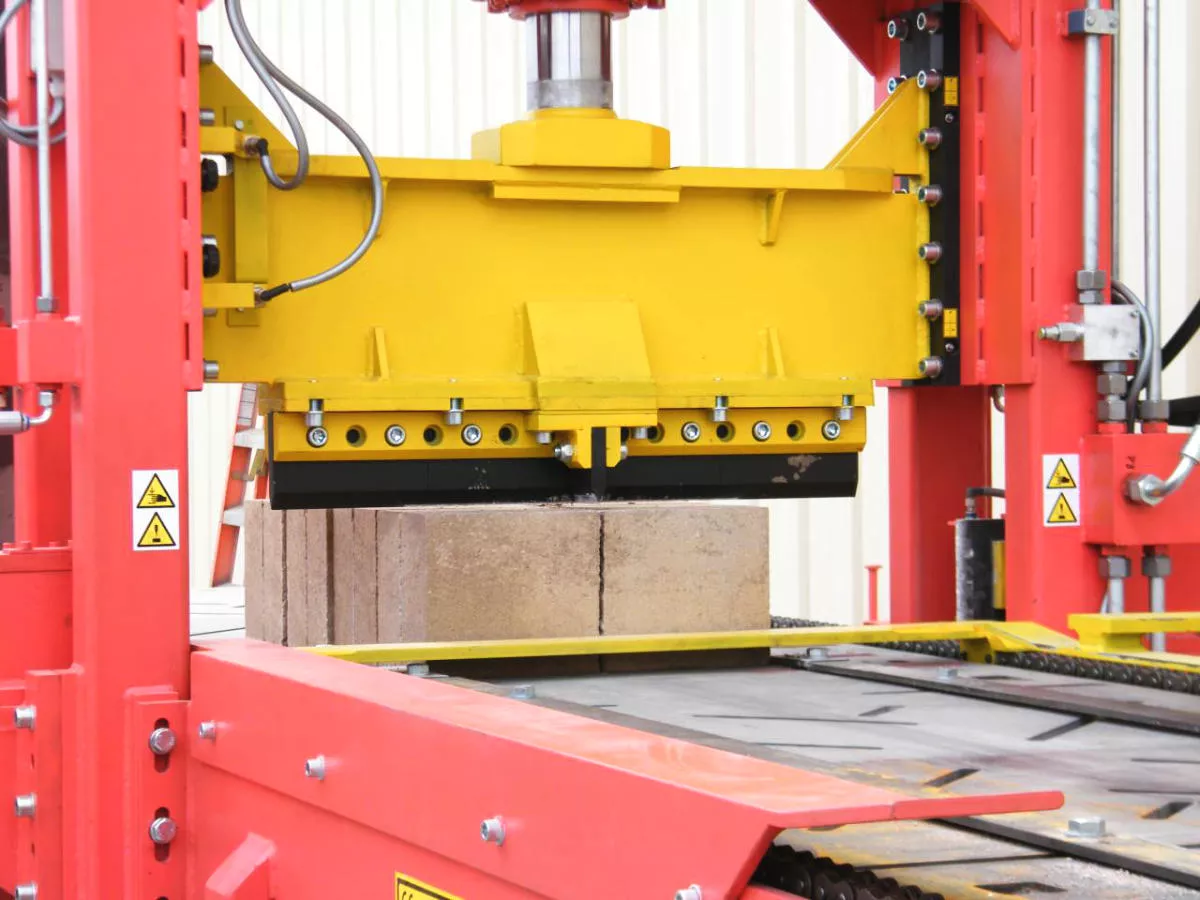

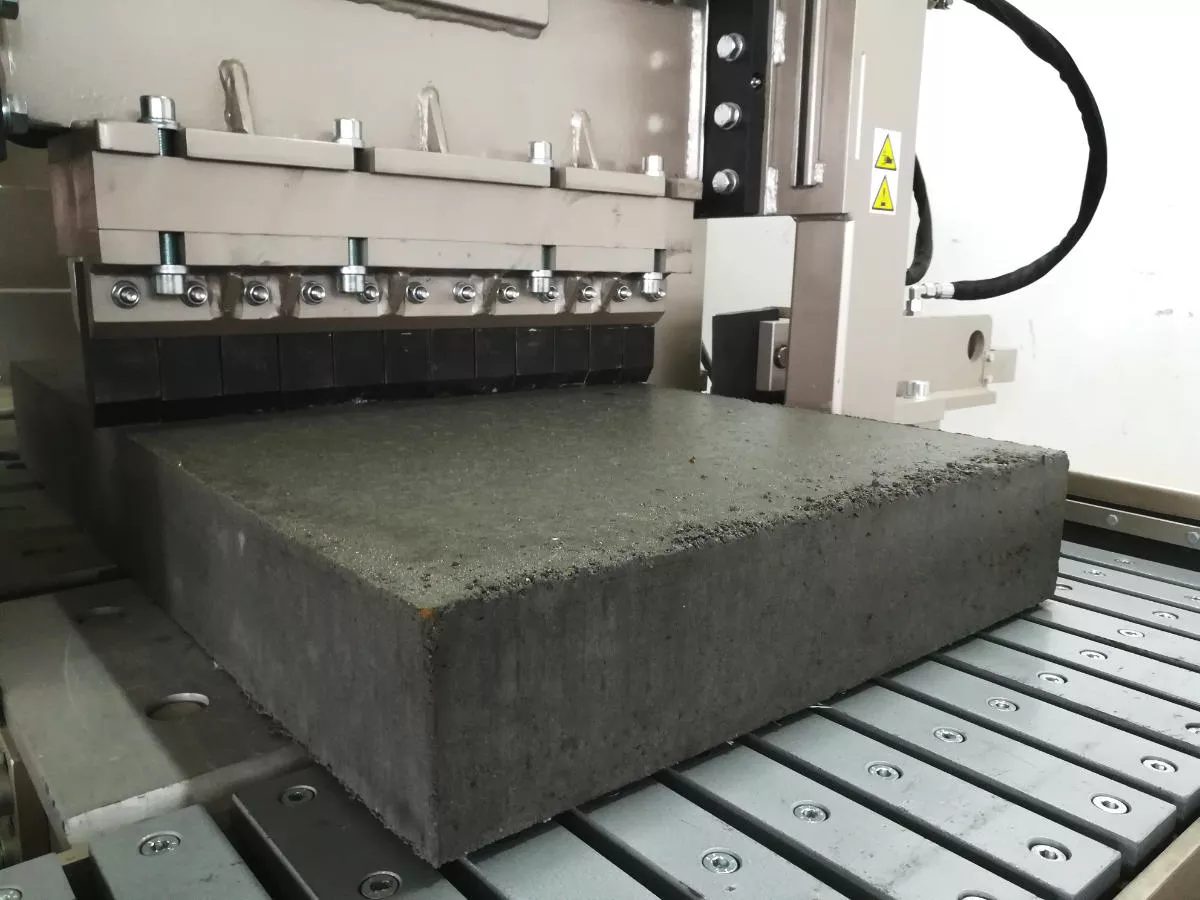

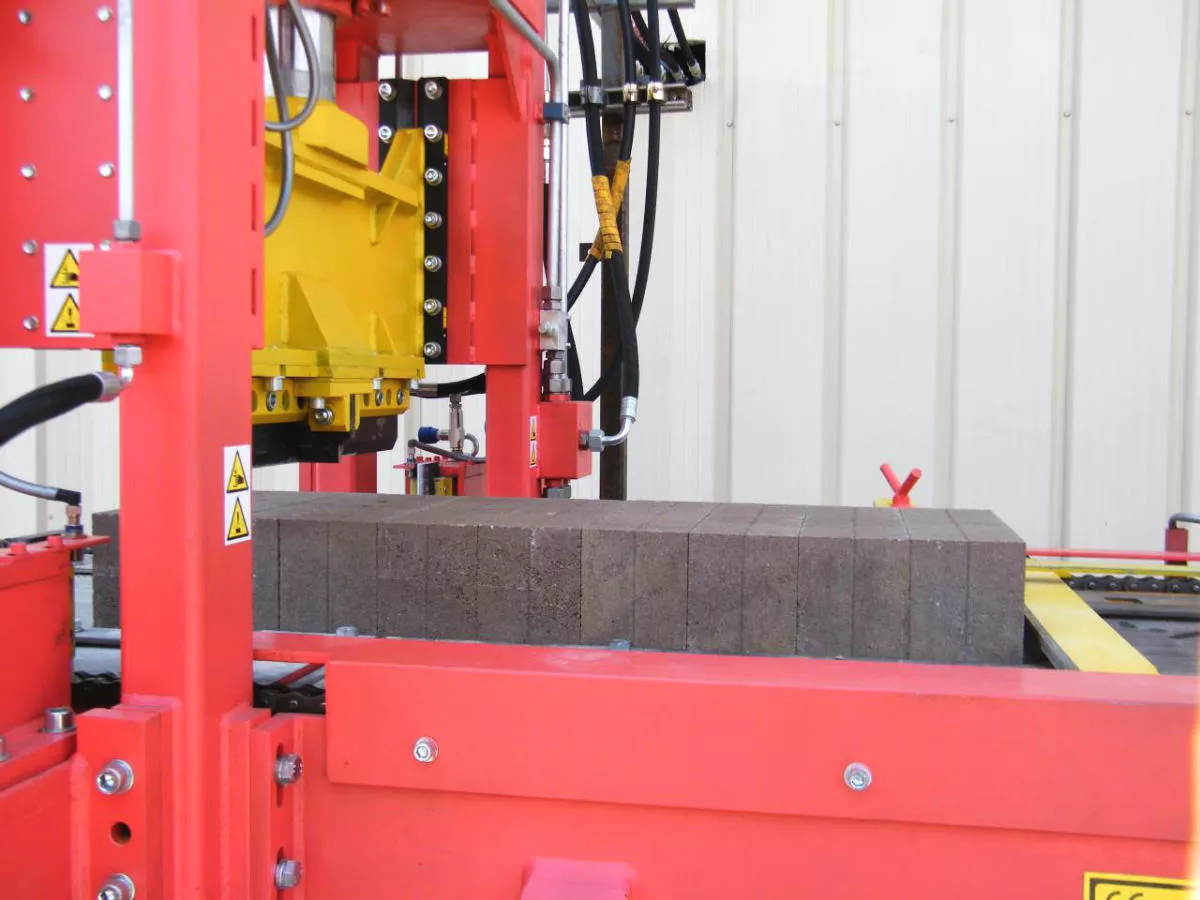

Both the upper and lower tool is leveling, which results in better quality of split products. We use strong teeth in the tools, which have a long service life.
Splitting system

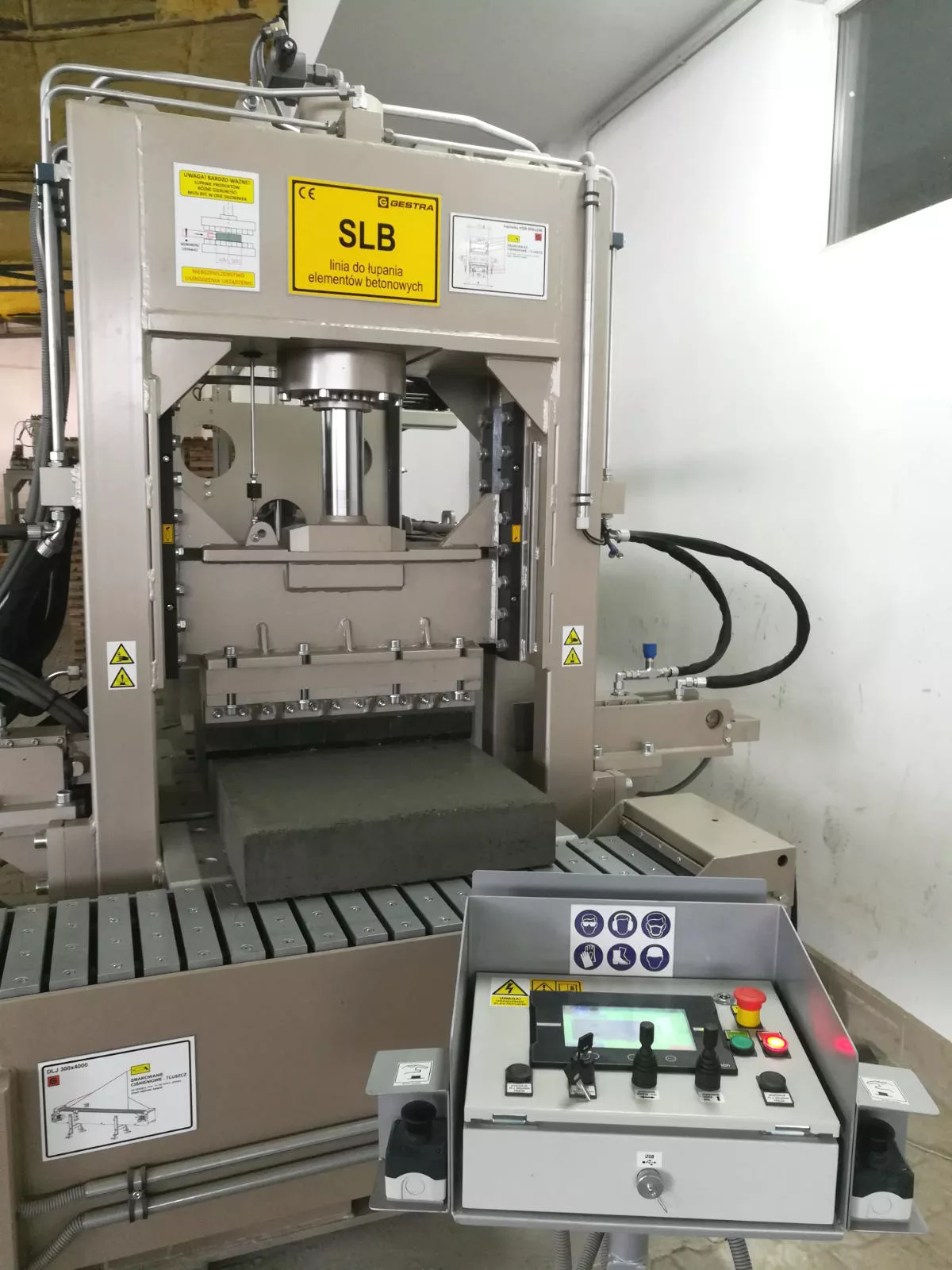

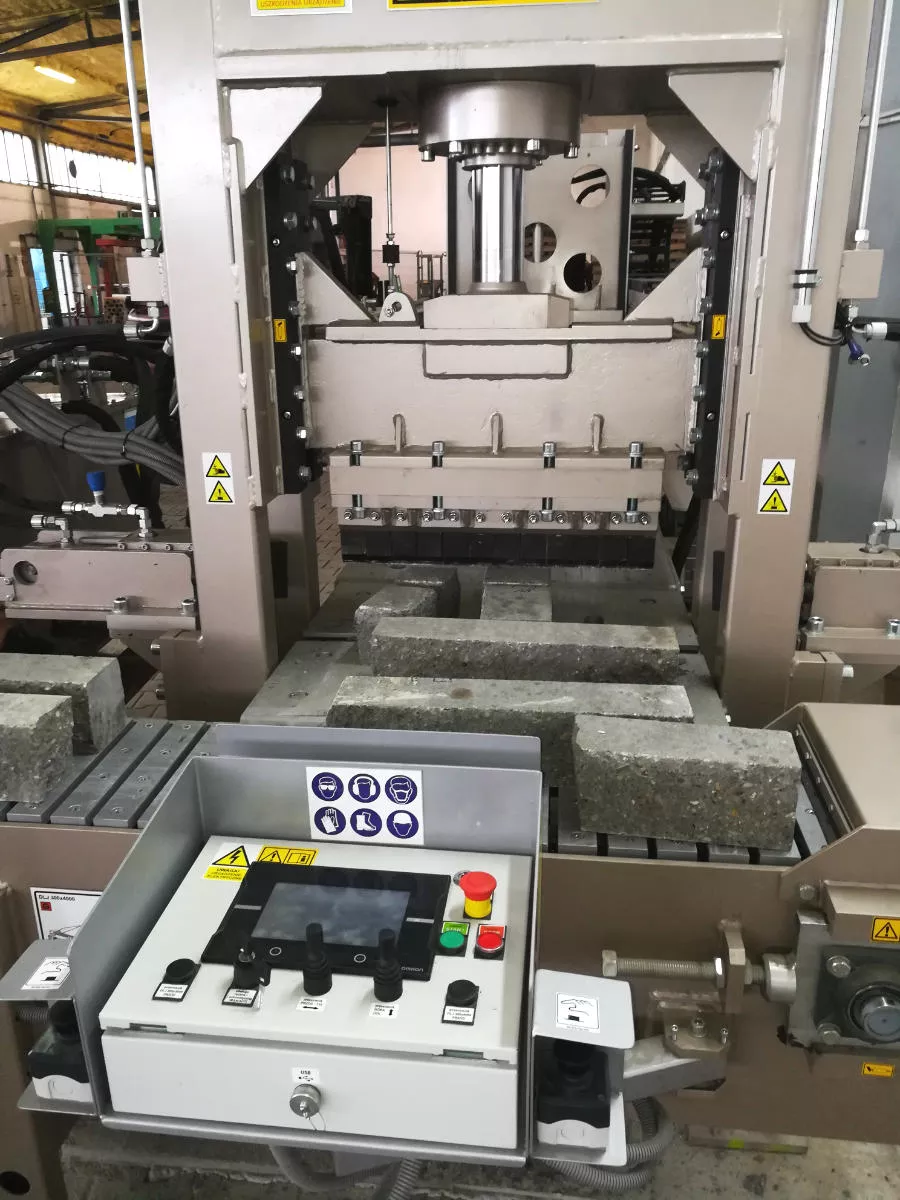

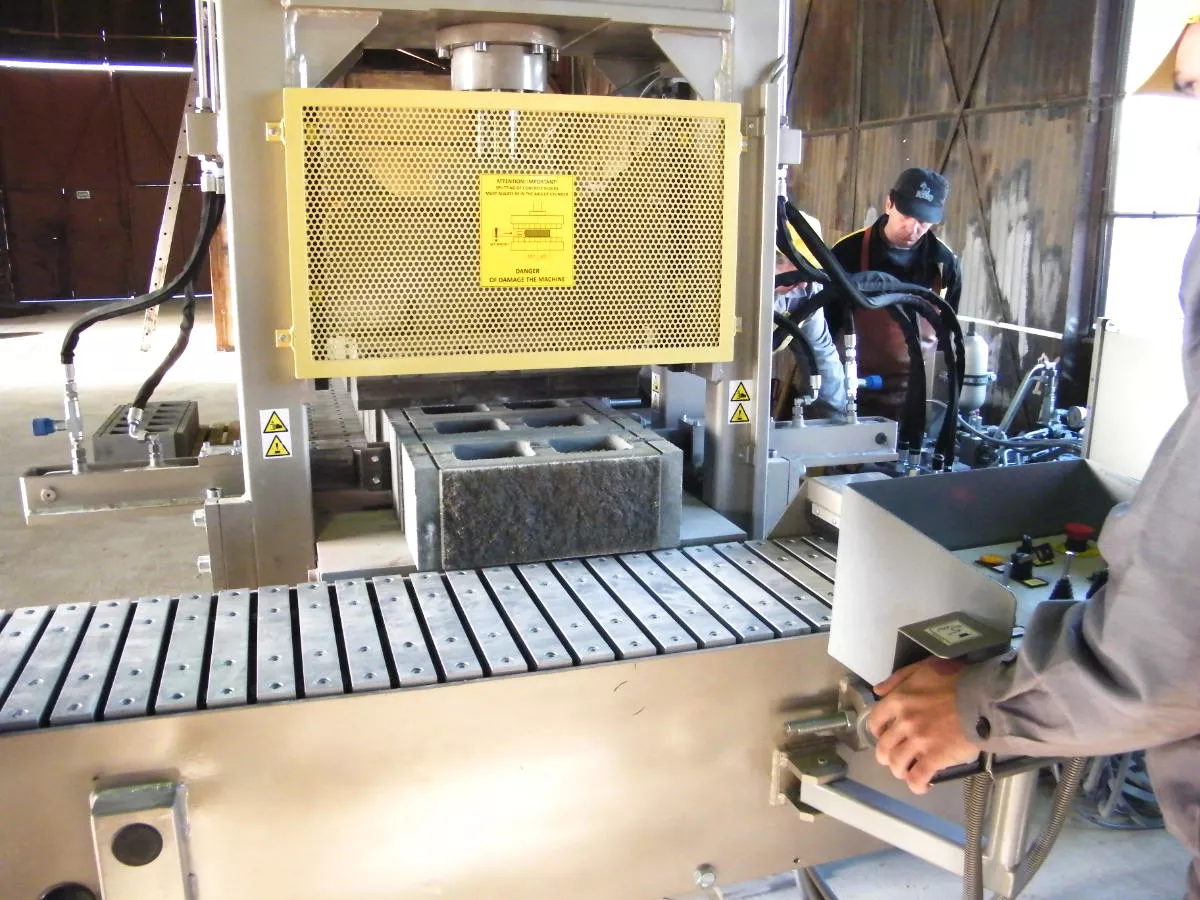

The machine has a control panel with joysticks that control the manipulator and conveyors. The manipulator not only increases the productivity of the machine, but eliminates the physically very demanding work of precisely placing the stone under the splitting head and greatly increases the safety when working on the machine.
Technical parameters
HSB 600 series
| metric units | imperial units | |
| Tool length (T): | 600 mm | ~ 23 ²/₃" |
| Stroke (S): | 280 mm | ~ 11" |
| Splitting power: | 43 / 53 tons | ~ 47 / 58 US tons |
| Quantity of splitting teeth: | 12+12 (with 50 mm) / 6+6 (width 100 mm) pcs | 12+12 (with 2") / 6+6 (width 4") pcs |
| Main dimensions | ||
| Width (W): | 1 260 mm | ~ 4ʹ 1 ²/₃" |
| Width - side tools extended (SW): | 1 935 mm | ~ 6ʹ 4 ¹/₅" |
| Length (L): | 730 mm | ~ 2ʹ 4 ³/₄" |
| Height (H): | 2 350 mm | ~ 7ʹ 8 ¹/₂" |
| Weight (without oil filling): | ~ 2 400 kg | ~ 5 295 lbs |
| Hydraulic unit | ||
| Nominal pressure: | 300 bar | ~ 4 350 psi |
| Oil tank filling: | 200 l | ~ 53 gal |
| Electrical system | 3NPE AC 50 Hz 230/400 V | 3NPE AC 60 Hz 275/480 V |
| Main motor: | 7,5 kW | ~ 10 HP |
| Cooling unit: | 0,75 kW | ~ 1 HP |
| Heating coil: | 1,5 kW | ~ 2 HP |
HSB 800 series
| metric units | imperial units | |
| Tool length (T): | 800 mm | ~ 31 ¹/₂" |
| Stroke (S): | 280 mm | ~ 11" |
| Splitting power: | 43 / 53 / 63 / 80 tons | ~ 47 / 58 / 70 / 88 US tons |
| Quantity of splitting teeth: | 16+16 (with 50 mm) / 8+8 (width 100 mm) pcs | 16+16 (with 2") / 8+8 (width 4") pcs |
| Main dimensions | ||
| Width (W): | 1 810 mm | ~ 5ʹ 11 ¹/₄" |
| Width - side tools extended (SW): | 2 265 mm | ~ 7ʹ 5 ¹/₅" |
| Length (L): | 750 mm | ~ 2ʹ 5 ¹/₂" |
| Height (H): | 2 565 mm | ~ 8ʹ 5" |
| Weight (without oil filling): | ~ 4 100 kg | ~ 9 040 lbs |
| Hydraulic unit | ||
| Nominal pressure: | 300 bar | ~ 4 350 psi |
| Oil tank filling: | 200 l | ~ 53 gal |
| Electrical system | 3NPE AC 50 Hz 230/400 V | 3NPE AC 60 Hz 275/480 V |
| Main motor: | 7,5 kW | ~ 10 HP |
| Cooling unit: | 0,75 kW | ~ 1 HP |
| Heating coil: | 1,5 kW | ~ 2 HP |
HSB 1200 series
| metric units | imperial units | |
| Tool length (T): | 1 250 mm | ~ 49 ¹/₄" |
| Stroke (S): | 280 mm | ~ 11" |
| Splitting power: | 63 / 80 tons | ~ 69 / 88 US tons |
| Quantity of splitting teeth: | 25 + 25 (with 50 mm) pcs | 25 + 25 (with 2") pcs |
| Main dimensions | ||
| Width (W): | 2 320 mm | ~ 7ʹ 7 ¹/₃" |
| Width - side tools extended (SW): | 3 640 mm | ~ 11ʹ 11 ¹/₃" |
| Length (L): | 960 mm | ~ 3ʹ 1 ³/₄" |
| Height (H): | 3 575 mm | ~ 11ʹ 8 ³/₄" |
| Weight (without oil filling): | ~ 6 250 kg | ~ 7 170 lbs |
| Hydraulic unit | ||
| Nominal pressure: | 300 bar | ~ 4 350 psi |
| Oil tank filling: | 700 l | ~ 185 gal |
| Electrical system | 3NPE AC 50 Hz 230/400 V | 3NPE AC 60 Hz 275/480 V |
| Main motor: | 23 kW | ~ 31 HP |
| Cooling unit: | 0,75 kW | ~ 1 HP |
| Heating coil: | 1,5 kW | ~ 2 HP |
